DELCOOL 5 SD GR Flexible coolant hose for data centres, corrugated cover
Suction and delivery hose for modern coolants, including OAT coolants, in data centre cooling systems; the corrugated cover makes it very flexible for difficult installations in tight spaces. Inner diameter 13–102 mm, working pressure up to 5 bar, temperature from −40 to +120 °C.
- Inner diameter
- 13–102 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 13, 16, 19, 25, 32, 38, 51, 63.5, 76, 90, 102
- Working pressure, bar
- 5
- Medium
- Coolant
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, metal helix
- Temperature, °C
- −40…+120
- Tube material
- EPM
- Coil length, m
- 40

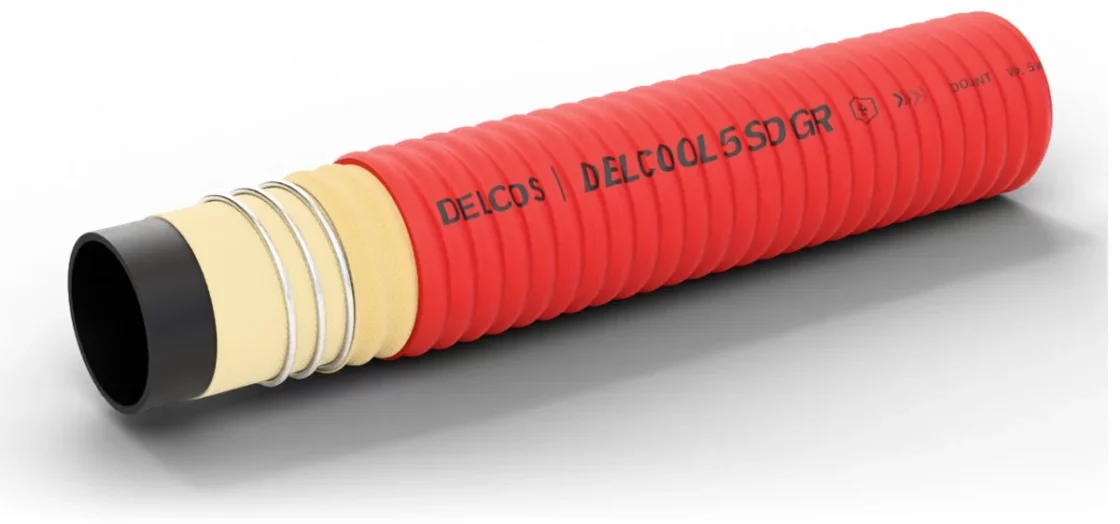

Construction
- Inner tube
- EPM rubber, black, smooth, free of calcium and zinc, peroxide cured
- Reinforcement
- High tenacity synthetic fabric, metal helix
- Cover
- EPDM/CPE rubber, red, square corrugated, cloth impression, resistant to abrasion and ozone
DELCOOL 5 SD GR sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 13 | 673013000 | 5 | 15 | 0.8 | 50 | 0.4 | 40 |
| 16 | 673016000 | 5 | 15 | 0.8 | 60 | 0.45 | 40 |
| 19 | 673019000 | 5 | 15 | 0.8 | 70 | 0.5 | 40 |
| 25 | 673025000 | 5 | 15 | 0.8 | 85 | 0.58 | 40 |
| 32 | 673032000 | 5 | 15 | 0.8 | 105 | 0.73 | 40 |
| 38 | 673038000 | 5 | 15 | 0.8 | 130 | 0.93 | 40 |
| 51 | 673051000 | 5 | 15 | 0.8 | 165 | 1.31 | 40 |
| 63.5 | 673063000 | 5 | 15 | 0.8 | 210 | 1.74 | 40 |
| 76 | 673076000 | 5 | 15 | 0.8 | 250 | 2.17 | 40 |
| 90 | 673090000 | 5 | 15 | 0.8 | 300 | 2.57 | 40 |
| 102 | 673102000 | 5 | 15 | 0.8 | 340 | 3.17 | 40 |
Application and limits
- Application
- Suction and delivery hose for modern coolants, including OAT coolants, in data centre cooling systems; the corrugated cover makes it very flexible for difficult installations in tight spaces.
- Features
- Very flexible, peroxide cured EPM inner tube, free of calcium and zinc, flame retardant cover
- Limits
- Operating temperature from −40 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
