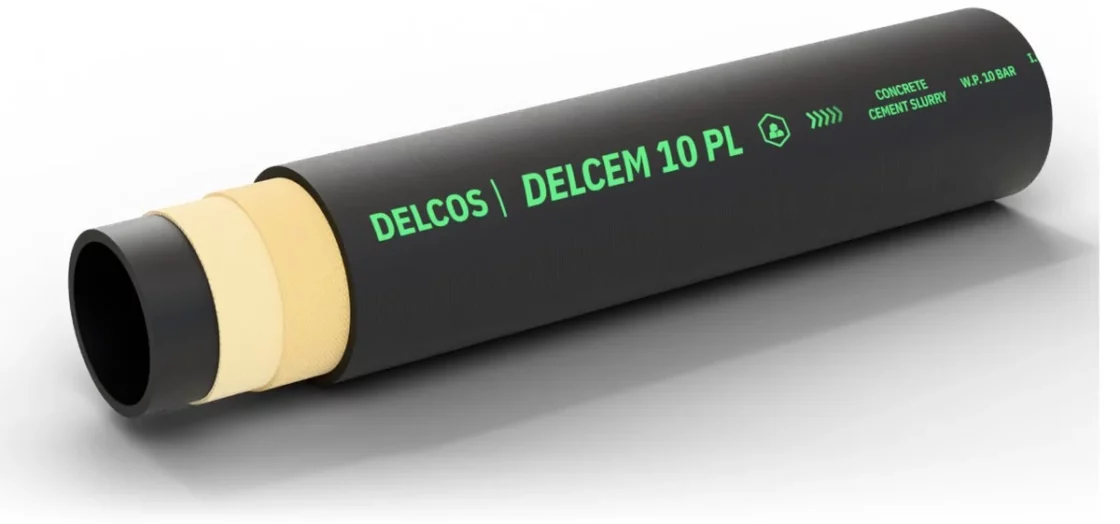

DELCEM 10 PL hose with layers partly removed: inner tube, reinforcement and cover

DELCEM 10 PL Concrete placement hose

Hose for wet concrete, cement and sand with pneumatic concrete pumps. Inner diameter 25–127 mm, working pressure up to 10 bar, temperature from −30 to +90 °C.

Inner diameter: 25–127 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −30…+90 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 25, 32, 35, 38, 51, 60, 63, 65, 75, 100, 127
Working pressure, bar: 10
Medium: Cement slurry, concrete, sand
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+90
Tube material: Synthetic and natural rubber
Coil length, m: 20, 40

Construction

Inner tube: Blend of synthetic and natural elastomers, black, smooth, antistatic, abrasion resistant
Reinforcement: High tensile textile cord
Cover: Blend of synthetic and natural elastomers, black, smooth with cloth impression, antistatic, abrasion, weather and ozone resistant

DELCEM 10 PL sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Wall thickness, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
25	905025040	40	7.5 ± 0.6	10	30	200	0.94	20, 40
32	905032052	52	10 ± 0.6	10	30	260	1.56	20, 40
35	905035049	49	7 ± 0.6	10	30	280	1.07	20, 40
38	905038058	58	10 ± 0.6	10	30	305	1.78	20, 40
51	905051071	71	10 ± 0.6	10	30	400	2.33	20, 40
60	905060080	80	10 ± 0.6	10	30	480	2.51	20, 40
63	905063085	85	11 ± 0.8	10	30	500	3.07	20, 40
65	905065088	88	11.5 ± 0.8	10	30	520	3.35	20, 40
75	905075099	99	12 ± 0.8	10	30	600	3.79	20, 40
100	905100124	124	12 ± 0.8	10	30	800	4.85	20, 40
127	905127155	155	14 ± 0.8	10	30	1020	7.37	20, 40

Application and limits

Application: Hose for wet concrete, cement and sand with pneumatic concrete pumps.
Features: Wear resistant tube and cover, designed for high kink resistance and perfect flow, suitable for commonly used fittings
Limits: Operating temperature from −30 to +90 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
