DELHD 5 CR Flexible hardwall hose for dry and wet media
Extremely flexible yet robust hardwall hose for high performance suction equipment, for dry or wet media such as mud, sand or blasting media, protected against static electricity. Inner diameter 51–150 mm, working pressure up to 5 bar, temperature from −30 to +90 °C.
- Inner diameter
- 51–150 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −30…+90 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 75, 100, 125, 150
- Working pressure, bar
- 5
- Medium
- Abrasive media, sand, slurry
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+90
- Tube material
- Synthetic and natural rubber
- Coil length, m
- 20, 40

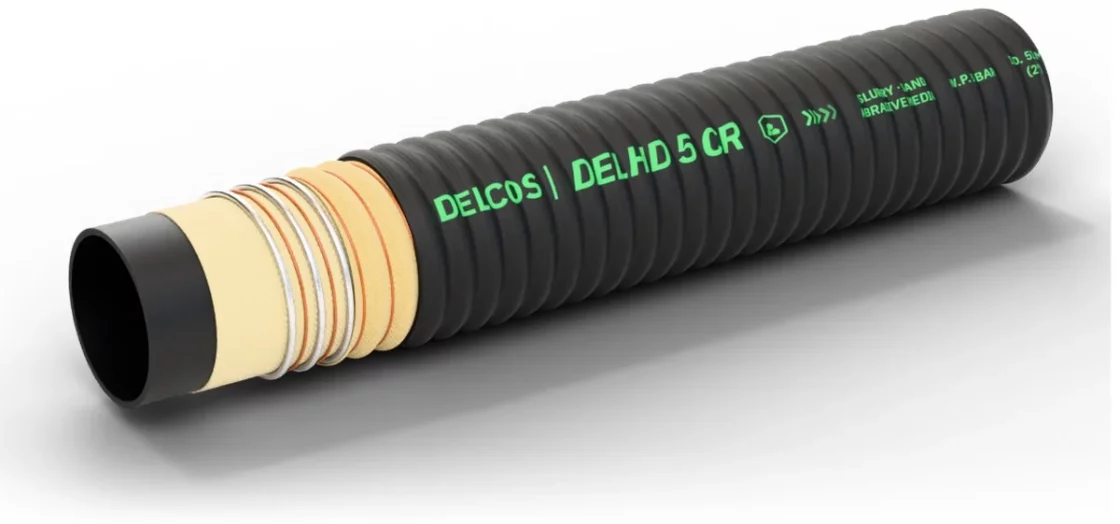

Construction
- Inner tube
- Blend of synthetic and natural elastomers, black, smooth, antistatic, abrasion resistant
- Reinforcement
- High tensile textile cord, steel helix, antistatic wire
- Cover
- Blend of synthetic and natural elastomers, black, G-corrugated with rope and cloth impression, antistatic, abrasion, weather and ozone resistant
- Electrical properties
- Protected against static electricity
DELHD 5 CR sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Wall thickness, mm | Working pressure, bar | Burst pressure, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 51 | 902051065 | 65 | 7 ± 0.6 | 5 | 15 | 150 | 1.5 | 20, 40 |
| 75 | 902075093 | 93 | 9 ± 0.6 | 5 | 15 | 225 | 3.15 | 20, 40 |
| 100 | 902100120 | 120 | 10 ± 0.6 | 5 | 15 | 300 | 4.48 | 20, 40 |
| 125 | 902125145 | 145 | 10 ± 0.6 | 5 | 15 | 375 | 6.23 | 20, 40 |
| 150 | 902150172 | 172 | 11 ± 0.8 | 5 | 15 | 450 | 7.1 | 20, 40 |
Application and limits
- Application
- Extremely flexible yet robust hardwall hose for high performance suction equipment, for dry or wet media such as mud, sand or blasting media, protected against static electricity.
- Features
- Strong, wear resistant tube, vacuum proof, flexible, light weight
- Limits
- Operating temperature from −30 to +90 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
