DELSC STREET SWEEPER Convoluted hose for street sweepers
Very flexible suction hose for abrasive granulates and powders on street sweepers and industrial cleaning machines. Inner diameter 102–305 mm, temperature from −40 to +70 °C.
- Inner diameter
- 102–305 mm
- Mode
- suction
- Temperature
- −40…+70 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 102, 127, 130, 152, 203, 220, 254, 305
- Medium
- Abrasive media, granulates, leaves, grass, debris
- Mode
- Suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+70
- Tube material
- Synthetic and natural rubber

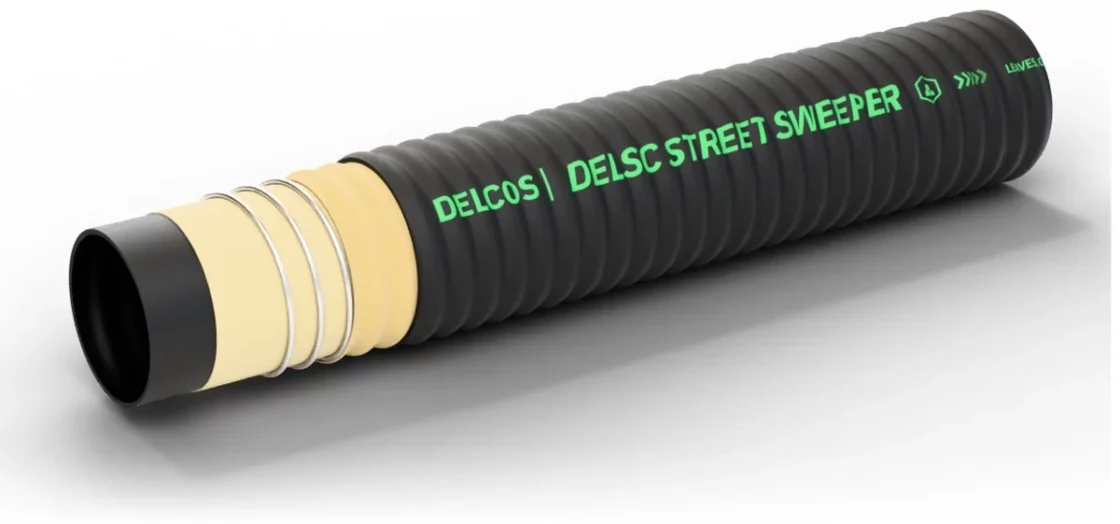

Construction
- Inner tube
- NR/SBR rubber, black, corrugated, conductive (R ≤ 10⁶ Ω)
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- NR/SBR rubber, black, corrugated, cloth impression, antistatic, resistant to abrasion and weathering
- Electrical properties
- Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover
DELSC STREET SWEEPER sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m | Cut length, m |
|---|---|---|---|---|---|---|
| 102 | 908102000 | 0.7 | 400 | 2.4 | on request | — |
| 127 | 908127000 | 0.7 | 500 | 2.6 | on request | — |
| 130 | 908130000 | 0.7 | 520 | 2.7 | on request | — |
| 152 | 908152000 | 0.6 | 600 | 3.2 | on request | — |
| 203 | 908203L10 | 0.6 | 800 | 5.5 | — | 1 |
| 203 | 908203L14 | 0.6 | 800 | 5.5 | — | 1.4 |
| 203 | 908203L16 | 0.6 | 800 | 5.5 | — | 1.6 |
| 203 | 908203L20 | 0.6 | 800 | 5.5 | — | 2 |
| 220 | 908220000 | 0.6 | 880 | 5.7 | on request | — |
| 254 | 908254L10 | 0.5 | 1000 | 6.8 | — | 1 |
| 254 | 908254L14 | 0.5 | 1000 | 6.8 | — | 1.4 |
| 254 | 908254L16 | 0.5 | 1000 | 6.8 | — | 1.6 |
| 254 | 908254L20 | 0.5 | 1000 | 6.8 | — | 2 |
| 305 | 908305000 | 0.3 | 1200 | 8.05 | on request | — |
Application and limits
- Application
- Very flexible suction hose for abrasive granulates and powders on street sweepers and industrial cleaning machines.
- Features
- Very flexible, abrasion resistant
- Limits
- Operating temperature from −40 to +70 °C.
- Permissible vacuum depends on the inner diameter — see the table.
