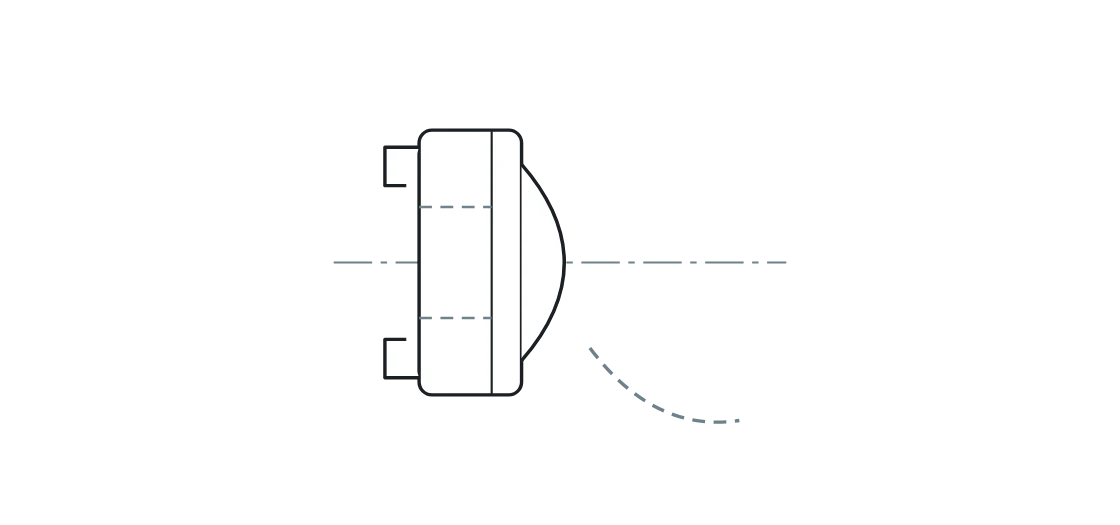

Storz blank cap with chain Blank cap with chain for Storz heads

Storz couplings are symmetrical: two identical heads with lugs connect with a quarter turn, without male and female parts. The size of a Storz head is set by the distance between the lugs.

System: Storz
Connection: Cap

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Coupling system: Storz
Connection: Cap

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

DN, mm	Lug distance, mm	Article	Weight, kg
—	31	248000031	0.1
—	66	248000066	0.374
—	81	248000081	0.464
—	89	248000089	0.556
—	115	248000115	0.961
—	133	248000133	1.275

Application and limits

Application: Storz couplings are symmetrical: two identical heads with lugs connect with a quarter turn, without male and female parts. The size of a Storz head is set by the distance between the lugs.
Features: Symmetrical coupling — no male and female parts, connects with a quarter turn
Limits: Working pressure and temperature depend on the size, material and seal — please check when ordering.
