DELFOOD MILK 10 D
Food delivery hose for milk and fatty foods
ID 19–102 mm · up to 10 bar
DELFOOD MILK 10 SD LITE Light food hose for milk and fatty foods, plastic helix
Very light, crush resistant suction and delivery hose for milk, dairy products, olive oil and other fatty foods. Inner diameter 38–102 mm, working pressure up to 10 bar, temperature from −40 to +80 °C.
- Inner diameter
- 38–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 38, 51, 63.5, 65, 76, 102
- Working pressure, bar
- 10
- Medium
- Dairy products, edible oils, fatty foods, milk
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, plastic helix
- Temperature, °C
- −40…+80
- Tube material
- Natural rubber
- Coil length, m
- 40, 61

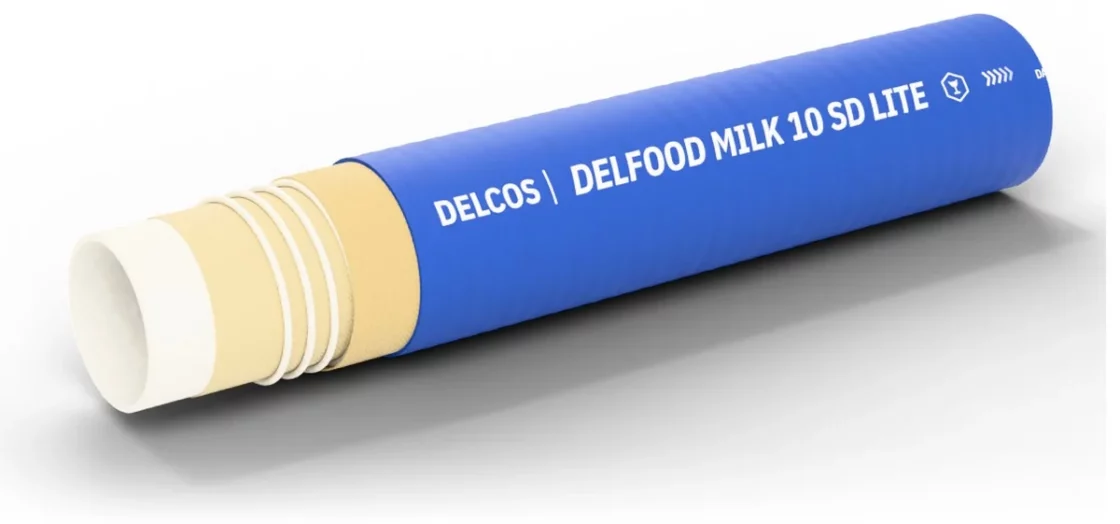

Construction
- Inner tube
- Natural rubber (NR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, plastic helix
- Cover
- Natural rubber (NR), blue, smooth, cloth impression, resistant to abrasion, ozone and weathering
DELFOOD MILK 10 SD LITE sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 38 | 735038052 | 52 | 10 | 30 | 0.4 | 150 | 1.28 | 40, 61 |
| 51 | 735051065 | 65 | 10 | 30 | 0.4 | 180 | 1.78 | 40, 61 |
| 63.5 | 735063081 | 81 | 10 | 30 | 0.4 | 192 | 2.46 | 40, 61 |
| 65 | 735065088 | 88 | 10 | 30 | 0.4 | 195 | 3.2 | 40, 61 |
| 76 | 735076098 | 98 | 10 | 30 | 0.4 | 228 | 4.07 | 40, 61 |
| 102 | 735102120 | 120 | 10 | 30 | 0.4 | 240 | 6.08 | 40, 61 |
Application and limits
- Application
- Very light, crush resistant suction and delivery hose for milk, dairy products, olive oil and other fatty foods.
- Features
- Light weight, crush resistant, odourless and tasteless inner tube
- Limits
- Operating temperature from −40 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
