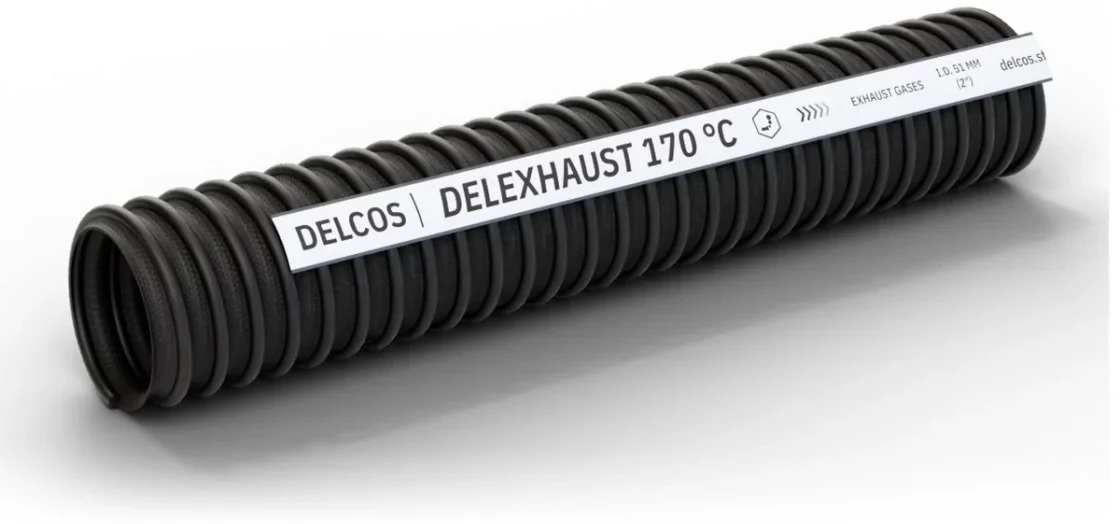

DELEXHAUST 170 °C Exhaust extraction hose up to +170 °C
Light, crush resistant suction hose for vehicle exhaust and other warm gases, for floor channels, reels and overhead rails in garages, body shops and test centres. Inner diameter 51–203 mm, temperature from −40 to +170 °C.
- Inner diameter
- 51–203 mm
- Mode
- suction
- Temperature
- −40…+170 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 63.5, 76, 80, 90, 102, 127, 152, 203
- Medium
- Exhaust gases
- Mode
- Suction
- Reinforcement
- Polyamide helix
- Temperature, °C
- −40…+170
- Tube material
- EPDM-coated fabric
- Coil length, m
- 10, 20, 40
Construction
- Wall
- EPDM-coated fabric, black
- Reinforcement
- Polyamide helix coated with EPDM rubber, other colours on request
DELEXHAUST 170 °C sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|
| 51 | 612051000 | 70 | 0.54 | 10, 20, 40 |
| 63.5 | 612063000 | 80 | 0.58 | 10, 20, 40 |
| 76 | 612076000 | 95 | 0.83 | 10, 20, 40 |
| 80 | 612080000 | 100 | 0.87 | 10, 20, 40 |
| 90 | 612090000 | 105 | 0.93 | 10, 20, 40 |
| 102 | 612102000 | 110 | 0.98 | 10, 20, 40 |
| 127 | 612127000 | 130 | 1.3 | 10, 20, 40 |
| 152 | 612152000 | 140 | 1.58 | 10, 20, 40 |
| 203 | 612203000 | 185 | 2.08 | 10, 20, 40 |
Application and limits
- Application
- Light, crush resistant suction hose for vehicle exhaust and other warm gases, for floor channels, reels and overhead rails in garages, body shops and test centres.
- Features
- Light weight, crush resistant
- Limits
- Operating temperature from −40 to +170 °C.
