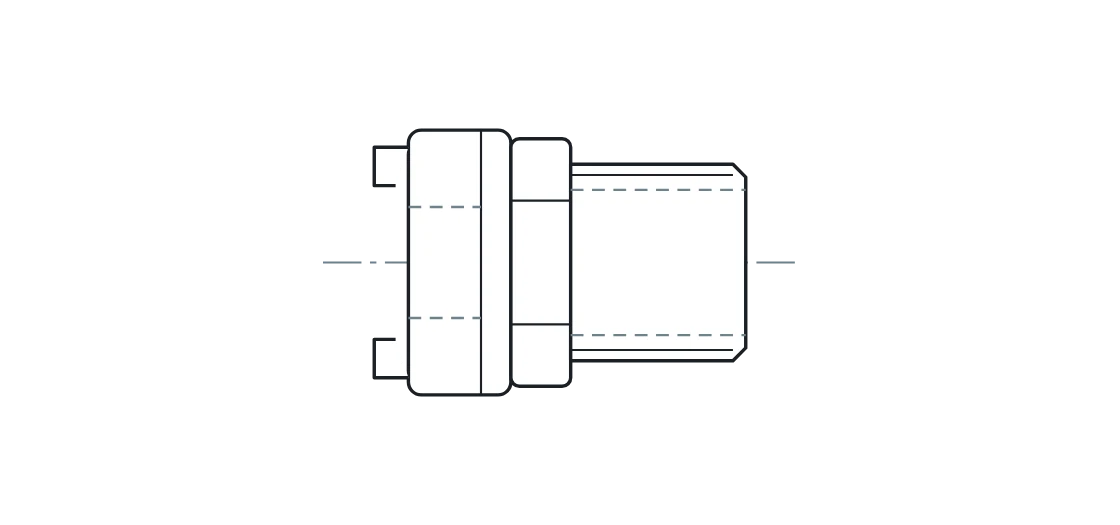

Storz adapter with male thread Storz head × male thread

Storz couplings are symmetrical: two identical heads with lugs connect with a quarter turn, without male and female parts. The size of a Storz head is set by the distance between the lugs. DN 25–100.

Inner diameter: 25–100 mm
System: Storz
Connection: Male thread

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 25, 32, 38, 50, 63, 75, 100
Coupling system: Storz
Connection: Male thread

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

DN, mm	Lug distance, mm	Article	Weight, kg
25	31	244025031	0.07
25	44	244025044	0.127
25	66	244025066	0.254
32	44	244032044	0.135
32	52	244032052	0.142
32	66	244032066	0.255
38	52	244038052	0.134
38	66	244038066	0.255
50	66	244050066	0.208
50	81	244050081	0.37
63	81	244063081	0.37
75	81	244075081	0.399
75	89	244075089	0.389
100	114	244100114	0.719
100	133	244100133	1.032

Application and limits

Application: Storz couplings are symmetrical: two identical heads with lugs connect with a quarter turn, without male and female parts. The size of a Storz head is set by the distance between the lugs.
Features: Symmetrical coupling — no male and female parts, connects with a quarter turn
Limits: Working pressure and temperature depend on the size, material and seal — please check when ordering.
