DELEXHAUST 500 °C Exhaust extraction hose up to +500 °C
Suction hose for extremely hot vehicle exhaust and other gases, for reels and overhead rails in garages, body shops and test centres. Inner diameter 102–254 mm, temperature from −85 to +500 °C.
- Inner diameter
- 102–254 mm
- Mode
- suction
- Temperature
- −85…+500 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 102, 127, 152, 203, 254
- Medium
- Exhaust gases
- Mode
- Suction
- Reinforcement
- Steel helix (external)
- Temperature, °C
- −85…+500
- Tube material
- Aluminised glass fibre cloth

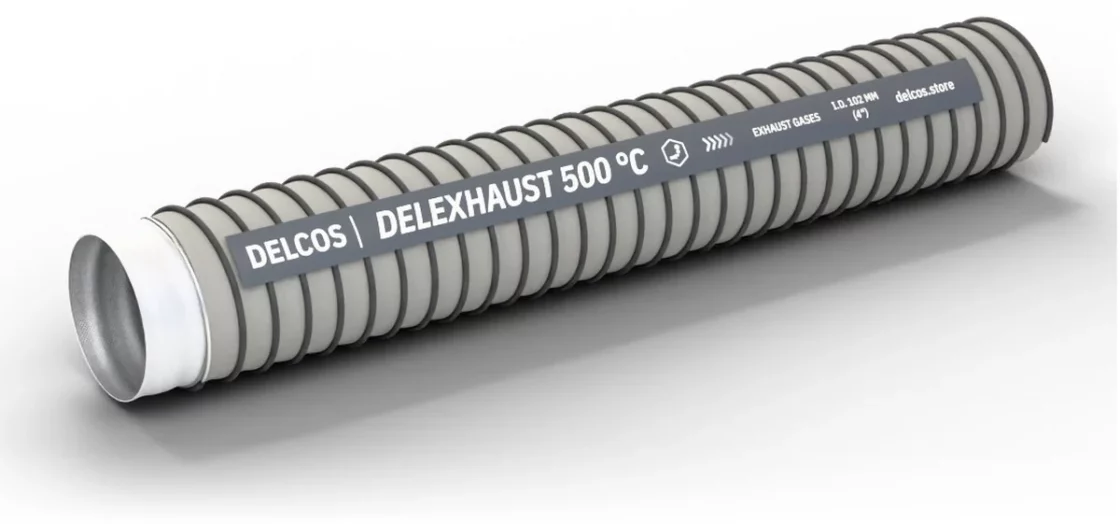

Construction
- Inner tube
- Aluminised glass fibre cloth, grey, smooth
- Cover
- Aramid fabric, grey, with an external steel helix held by a sewn ribbon; smooth cuffs at both ends
DELEXHAUST 500 °C sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|
| 102 | 615102000 | 135 | 1.2 | on request |
| 127 | 615127000 | 175 | 1.4 | on request |
| 152 | 615152000 | 220 | 1.6 | on request |
| 203 | 615203000 | 270 | 2.1 | on request |
| 254 | 615254000 | 320 | 2.55 | on request |
Application and limits
- Application
- Suction hose for extremely hot vehicle exhaust and other gases, for reels and overhead rails in garages, body shops and test centres.
- Features
- Smooth cuffs at both ends, up to +500 °C
- Limits
- Operating temperature from −85 to +500 °C.
- Version up to +1000 °C on request.
