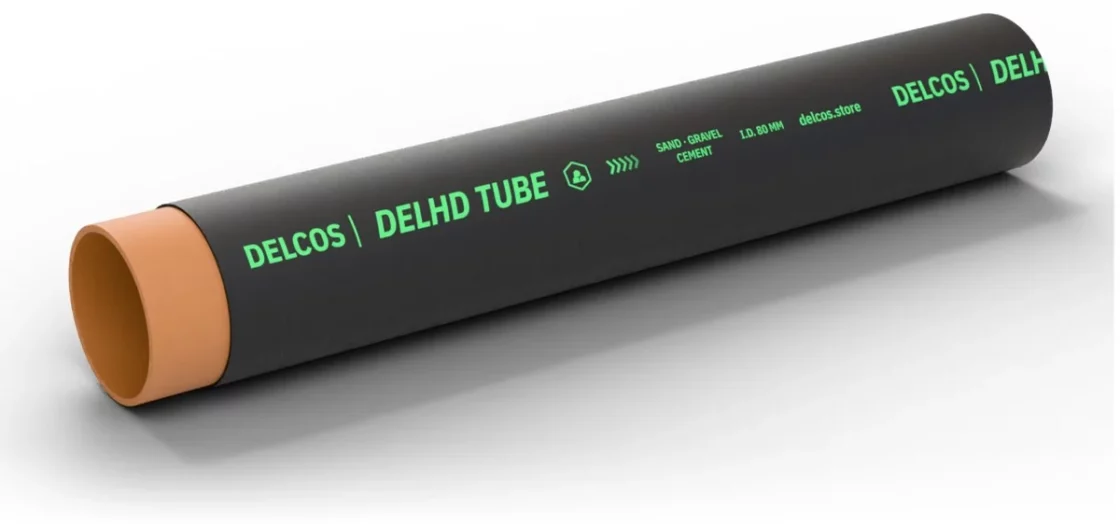

DELHD TUBE Natural rubber discharge tube for abrasives, no pressure

Gravity discharge tube for silos and hoppers: sand, gravel, cement and other abrasives. Inner diameter 80–600 mm, temperature from −40 to +70 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 80, 90, 102, 110, 120, 127, 140, 152, 160, 168, 180, 193, 203, 220, 254, 273, 280, 305, 320, 350, 400, 450, 500, 600
Medium: Cement, gravel, sand
Mode: Gravity discharge
Temperature, °C: −40…+70
Tube material: Natural rubber
Coil length, m: 5

Inner tube: Natural rubber (NR), brown, smooth, hardness 45 Shore A
Cover: Natural rubber (NR), black, smooth, cloth impression, hardness 45 Shore A

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Weight, kg/m	Coil length, m
80	915080090	90	1.45	5
90	915090100	100	1.63	5
102	915102112	112	1.83	5
110	915110120	120	1.97	5
120	915120130	130	2.14	5
127	915127137	137	2.26	5
140	915140150	150	2.48	5
152	915152162	162	2.69	5
160	915160170	170	2.82	5
168	915168178	178	2.96	5
180	915180190	190	3.17	5
193	915193203	203	3.34	5
203	915203211	211	3.5	5
203	915203213	213	3.56	5
220	915220228	228	3.75	5
220	915220230	230	3.85	5
254	915254262	262	4.35	5
254	915254264	264	4.45	5
273	915273281	281	4.5	5
273	915273283	283	4.76	5
280	915280290	290	4.88	5
305	915305315	315	5.31	5
320	915320330	330	5.56	5
350	915350360	360	6.1	5
400	915400410	410	7	5
450	915450460	460	7.79	5
500	915500510	510	8.64	5
600	915600610	610	10.35	5

Application: Gravity discharge tube for silos and hoppers: sand, gravel, cement and other abrasives.
Features: Brown wear layer, black outer layer, soft natural rubber, 45 Shore A
Limits: Operating temperature from −40 to +70 °C.
No pressure: gravity discharge only.
Also available as an all-beige tube.
