DELFOOD GRAIN 10 LF Layflat hose for grain and dry foods
Layflat delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed. Inner diameter 80–152 mm, working pressure up to 10 bar, temperature from −40 to +80 °C.
- Inner diameter
- 80–152 mm
- Working pressure
- up to 10 bar
- Mode
- pressure
- Temperature
- −40…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 80, 90, 102, 110, 152
- Working pressure, bar
- 10
- Medium
- Animal feed, flour, grain, rice, sugar
- Mode
- Pressure, layflat
- Reinforcement
- Textile cord
- Temperature, °C
- −40…+80
- Tube material
- Natural rubber
- Coil length, m
- 40

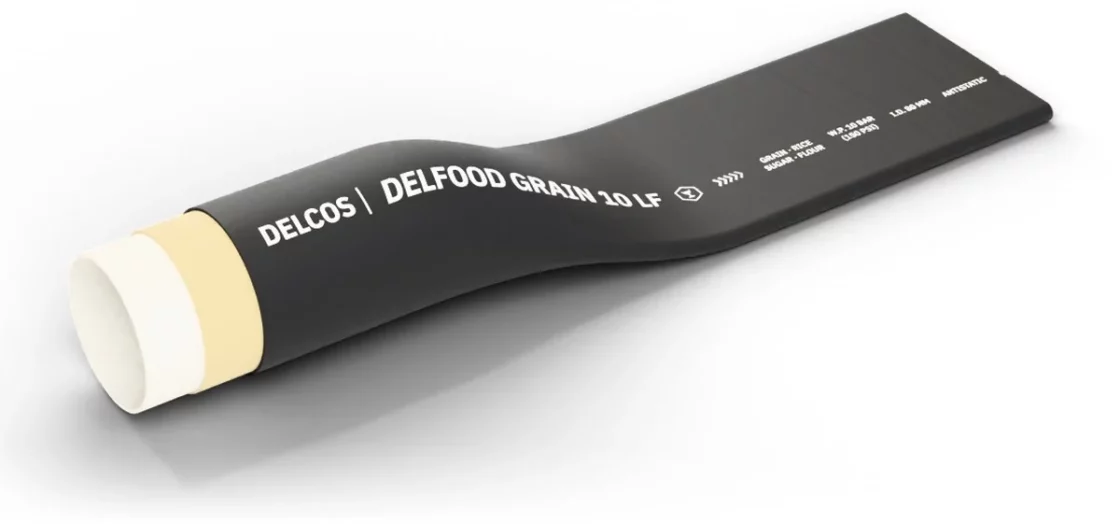

Construction
- Inner tube
- Natural rubber (NR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies
- Cover
- EPDM rubber, black, smooth, cloth impression, antistatic (R ≤ 10⁹ Ω), resistant to ozone, weathering and chemicals
- Electrical properties
- Antistatic cover (R ≤ 10⁹ Ω); two copper wires for grounding
DELFOOD GRAIN 10 LF sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 80 | 762080090 | 90 | 10 | 30 | 1.6 | 40 |
| 90 | 762090100 | 100 | 10 | 30 | 1.94 | 40 |
| 102 | 762102112 | 112 | 10 | 30 | 1.97 | 40 |
| 110 | 762110122 | 122 | 10 | 30 | 2.65 | 40 |
| 152 | 762152166 | 166 | 10 | 30 | 4.79 | 40 |
Application and limits
- Application
- Layflat delivery hose for dry and abrasive foods: grain, rice, sugar, flour and animal feed.
- Features
- Lays flat when empty, two copper wires for grounding
- Limits
- Operating temperature from −40 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
- Layflat hoses are not suitable for suction.
