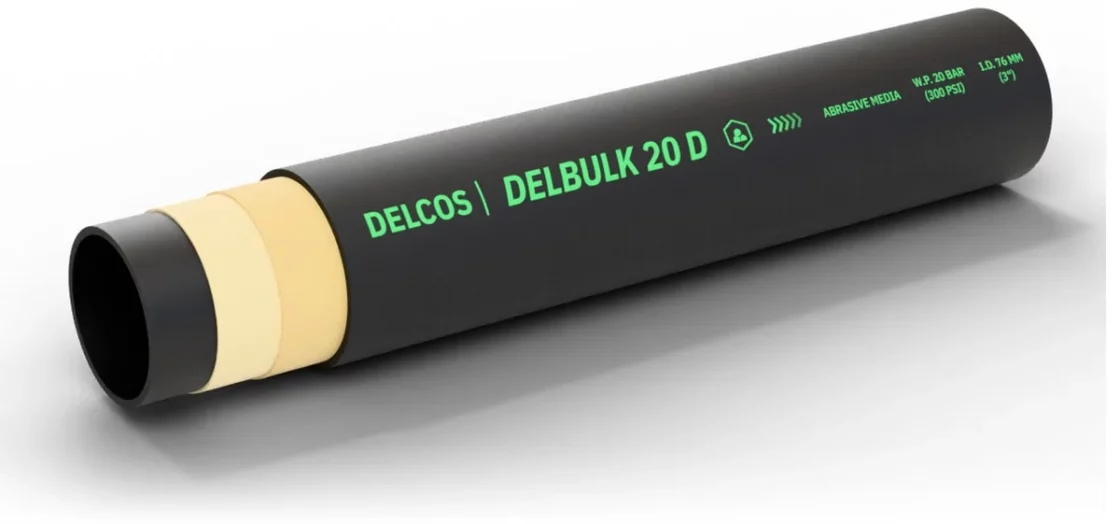

DELBULK 20 D hose with layers partly removed: inner tube, reinforcement and cover

DELBULK 20 D Delivery hose for abrasive bulk materials, 20 bar

Delivery hose for abrasive bulk materials in docks and on oil rigs. Inner diameter 76–152 mm, working pressure up to 20 bar, temperature from −40 to +70 °C.

Inner diameter: 76–152 mm
Working pressure: up to 20 bar
Mode: pressure only
Temperature: −40…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 76, 102, 127, 152
Working pressure, bar: 20
Medium: Abrasive media
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+70
Tube material: Natural rubber

Construction

Inner tube: Natural rubber (NR), black, smooth, resistant to abrasion
Reinforcement: High tensile synthetic cord
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, oils, grease and sea water
Electrical properties: Two crossed copper wires for grounding

DELBULK 20 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
76	925076096	96	20	80	3.2	≤ 60
102	925102124	124	20	80	4.3	≤ 60
127	925127149	149	20	80	5.5	≤ 60
152	925152174	174	20	80	7	≤ 60

Application and limits

Application: Delivery hose for abrasive bulk materials in docks and on oil rigs.
Features: Highly abrasion resistant natural rubber inner tube, crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
Limits: Operating temperature from −40 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
