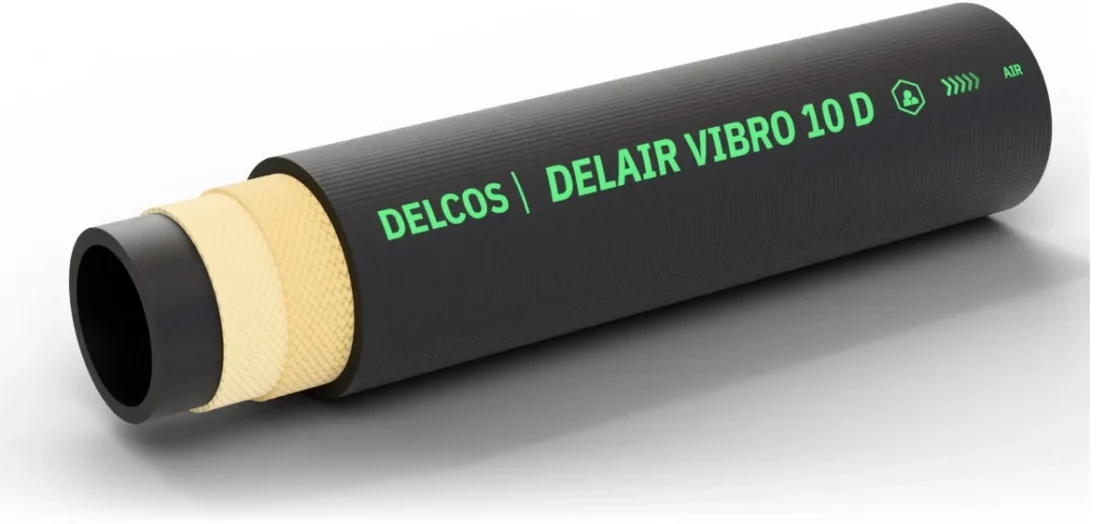

DELAIR VIBRO 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELAIR VIBRO 10 D Compressed air hose for concrete vibrators

Compressed air hose for pneumatic concrete vibrators. Strong yet flexible construction. Inner diameter 19–25 mm, working pressure up to 10 bar, temperature from −20 to +70 °C.

Inner diameter: 19–25 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −20…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25
Working pressure, bar: 10
Medium: Air
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −20…+70
Tube material: SBR
Coil length, m: 4, 5, 40

Construction

Inner tube: SBR rubber, black, smooth, hardness 85 Shore A
Reinforcement: High strength synthetic textile plies
Cover: NR/SBR rubber, black, smooth, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Antistatic cover

DELAIR VIBRO 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
19	611019030	30	10	30	0.57	4, 5, 40
25	611025039	39	10	30	0.95	4, 5, 40

Application and limits

Application: Compressed air hose for pneumatic concrete vibrators. Strong yet flexible construction.
Features: Strong, very flexible
Limits: Operating temperature from −20 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
