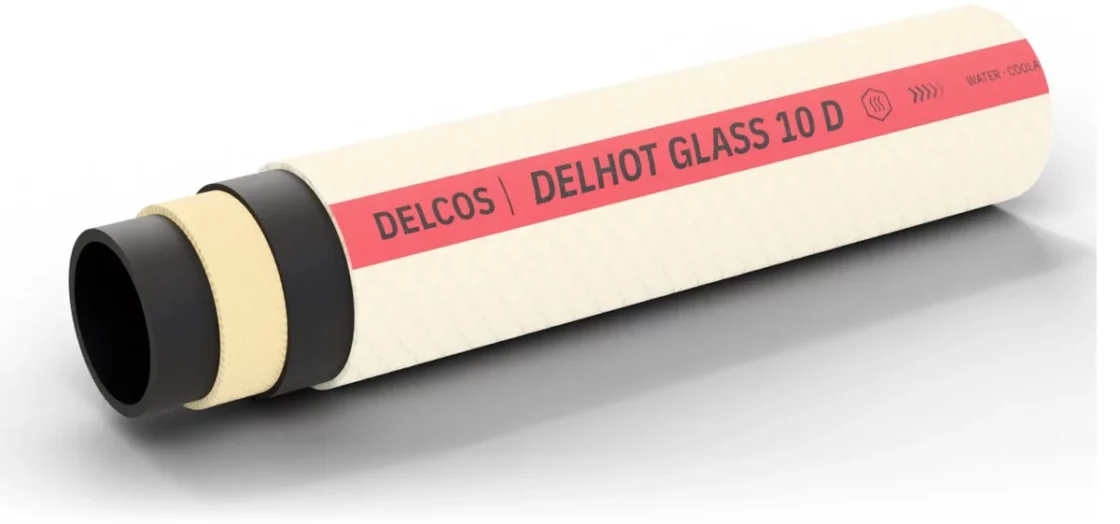

DELHOT GLASS 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELHOT GLASS 10 D Cooling water hose with glass fibre cover

Delivery hose for cooling water in steel mills, glass works and other hot environments; the glass fibre cover withstands outside temperatures up to +530 °C. Inner diameter 10–38 mm, working pressure up to 10 bar, temperature from −40 to +130 °C.

Inner diameter: 10–38 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+130 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 10, 13, 19, 25, 32, 38
Working pressure, bar: 10
Medium: Coolant, water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+130
Tube material: EPM
Coil length, m: 40, 61

Construction

Inner tube: EPM rubber, black, smooth, white insulating EPM on request
Reinforcement: High strength synthetic textile plies
Cover: Glass fibre braid vulcanised onto a black EPM rubber layer, withstands occasional contact with molten material

DELHOT GLASS 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
10	643010020	20	10	30	0.28	40
13	643013024	24	10	30	0.43	40
19	643019032	32	10	30	0.57	40, 61
25	643025039	39	10	30	0.87	40, 61
32	643032048	48	10	30	1.28	40, 61
38	643038055	55	10	30	1.65	40, 61

Application and limits

Application: Delivery hose for cooling water in steel mills, glass works and other hot environments; the glass fibre cover withstands outside temperatures up to +530 °C.
Features: Withstands occasional contact with molten material, up to +130 °C
Limits: Operating temperature from −40 to +130 °C.
Outside temperature up to +530 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
