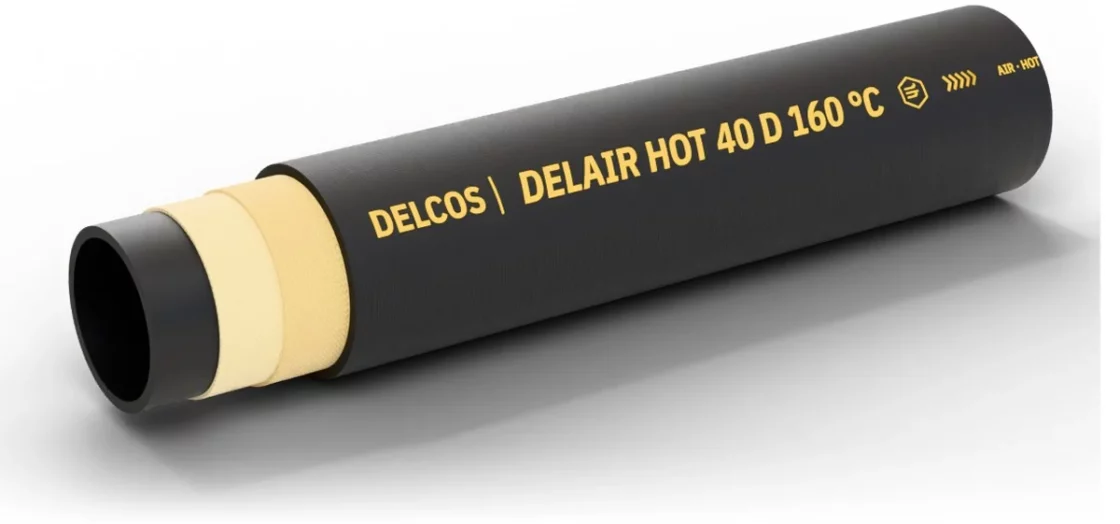

DELAIR HOT 40 D 160 °C hose with layers partly removed: inner tube, reinforcement and cover

DELAIR HOT 40 D 160 °C Hot compressed air hose up to +160 °C, 40 bar

Hose for hot compressed air for heavy pneumatic tools in road and railway construction, tunnelling and mining. For dry air only. Inner diameter 51–102 mm, working pressure up to 40 bar, temperature from −30 to +160 °C.

Inner diameter: 51–102 mm
Working pressure: up to 40 bar
Mode: pressure only
Temperature: −30…+160 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 51, 76, 102
Working pressure, bar: 40
Medium: Air, hot air
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −30…+160
Tube material: EPM
Coil length, m: 60

Construction

Inner tube: EPM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, resistant to abrasion and weathering

DELAIR HOT 40 D 160 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
51	606051070	70	40	120	500	1.93	60
76	606076100	100	40	120	740	3.75	60
102	606102128	128	40	120	970	5.12	60

Application and limits

Application: Hose for hot compressed air for heavy pneumatic tools in road and railway construction, tunnelling and mining. For dry air only.
Features: Up to +160 °C
Limits: Operating temperature from −30 to +160 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
For dry air only.
