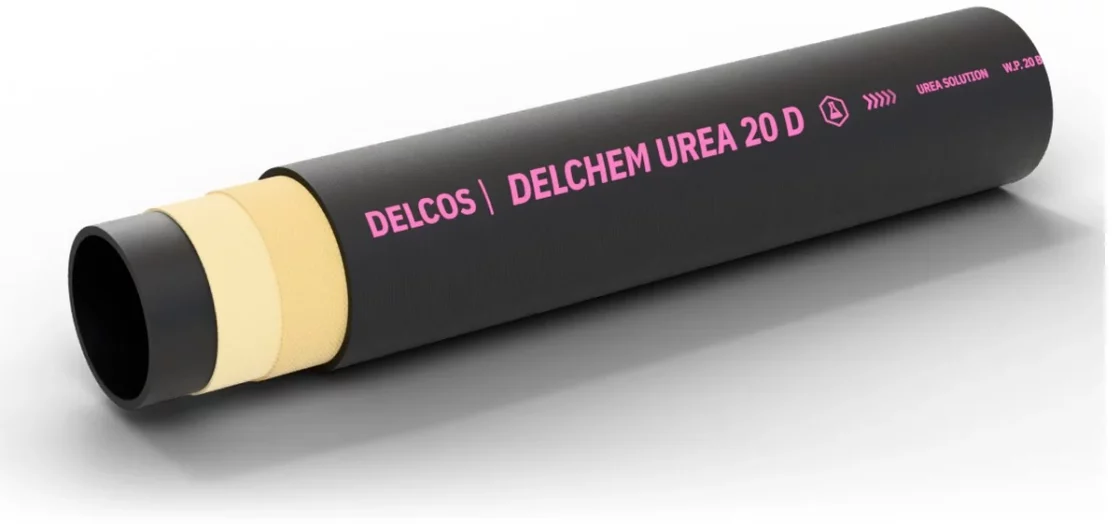

DELCHEM UREA 20 D hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM UREA 20 D Urea solution delivery hose

Delivery hose for urea solution used in diesel exhaust aftertreatment. Inner diameter 13–76 mm, working pressure up to 20 bar, temperature from −40 to +120 °C.

Inner diameter: 13–76 mm
Working pressure: up to 20 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 19, 25, 32, 38, 51, 63.5, 76
Working pressure, bar: 20
Medium: Urea solution
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM
Coil length, m: 40, 50, 61

Construction

Inner tube: EPDM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELCHEM UREA 20 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
13	825013023	23	20	60	100	0.42	50
16	825016026	26	20	60	100	0.5	50
19	825019027	27	20	60	120	0.55	50
19	825019032	32	20	60	120	0.6	50
25	825025039	39	20	60	150	0.88	50
32	825032044	44	20	60	200	1.12	40, 61
38	825038050	50	20	60	230	1.32	40, 61
51	825051066	66	20	60	305	1.85	40, 61
63.5	825063075	75	20	60	390	2.15	40, 61
76	825076092	92	20	60	460	2.7	40, 61

Application and limits

Application: Delivery hose for urea solution used in diesel exhaust aftertreatment.
Features: Up to +120 °C
Limits: Operating temperature from −40 to +120 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
