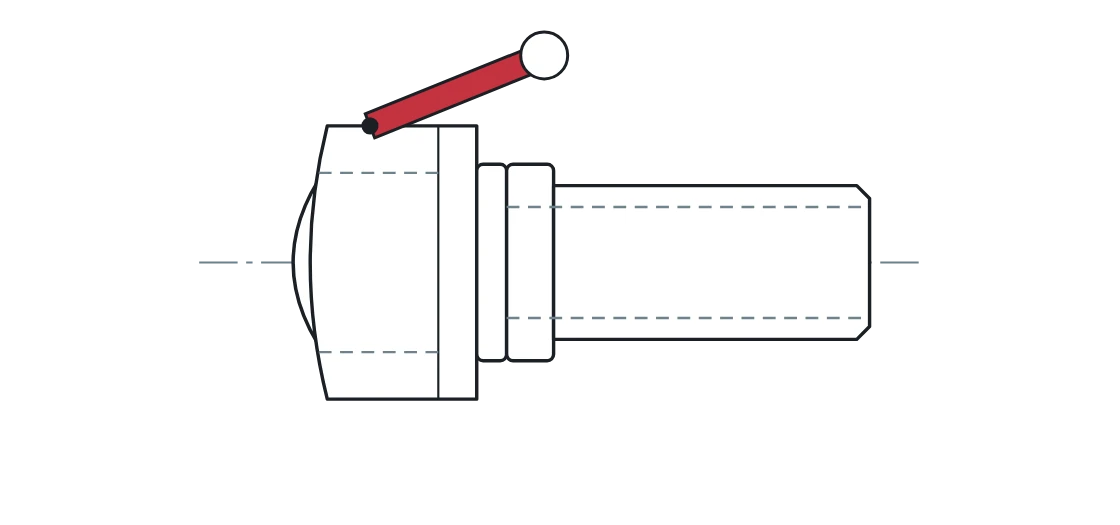

Drawing: Perrot coupling with rolled tail

Perrot coupling with rolled tail Perrot-type ball joint coupling

Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel. Pipe 50–305 mm.

System: Perrot
Material: Galvanized steel
Connection: Hose tail

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Coupling system: Perrot
Body material: Galvanized steel
Connection: Hose tail

Sizes and article numbers

Each size is a separate item with its own article number. Searching the site by article number takes you straight to the row.

Article	Pipe OD, mm	Part	Material
KVS-Si 50 x 50	50	male	Galvanized steel
KVS-Si 70 x 70	70	male	Galvanized steel
KVS-Si 89 x 75	89	male	Galvanized steel
KVS-Si 89 x 80	89	male	Galvanized steel
KVS-Si 89 x 90	89	male	Galvanized steel
KVS-Si 108 x 75	108	male	Galvanized steel
KVS-Si 108 x 100	108	male	Galvanized steel
KVS-Si 108 x 110	108	male	Galvanized steel
KVS-Si 133 x 125	133	male	Galvanized steel
KVS-Si 159 x 150	159	male	Galvanized steel
KVS-Si 216 x 200	216	male	Galvanized steel
KVS-Si 254	254	male	Galvanized steel
KVS-Si 305	305	male	Galvanized steel
KMS-Si 50 x 50	50	female	Galvanized steel
KMS-Si 70 x 70	70	female	Galvanized steel
KMS-Si 89 x 75	89	female	Galvanized steel
KMS-Si 89 x 80	89	female	Galvanized steel
KMS-Si 89 x 90	89	female	Galvanized steel
KMS-Si 108 x 75	108	female	Galvanized steel
KMS-Si 108 x 100	108	female	Galvanized steel
KMS-Si 108 x 110	108	female	Galvanized steel
KMS-Si 133 x 125	133	female	Galvanized steel
KMS-Si 159 x 150	159	female	Galvanized steel
KMS-Si 216 x 200	216	female	Galvanized steel
KMS-Si 254	254	female	Galvanized steel
KMS-Si 305	305	female	Galvanized steel

Application and limits

Application: Perrot-type ball joint couplings for pipes and hoses: the ball joint allows the line to deflect at an angle. Sizes by pipe outer diameter. Galvanized steel; OPTIMA — stainless steel; SUPRA — stainless and galvanized steel.
Features: Ball joint allows angular deflection
Limits: Working pressure and temperature depend on the size, material and seal — please check when ordering.
