DELMULTI 20 SD Multipurpose suction and delivery hose, EPDM, 20 bar
Multipurpose EPDM suction and delivery hose for chemicals, hot water and sea water at up to 20 bar. Inner diameter 25–203 mm, working pressure up to 20 bar, temperature from −40 to +120 °C.
- Inner diameter
- 25–203 mm
- Working pressure
- up to 20 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 25, 32, 35, 38, 45, 51, 63.5, 76, 102, 127, 152, 203
- Working pressure, bar
- 20
- Medium
- Chemicals, hot water, sea water
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+120
- Tube material
- EPDM
- Coil length, m
- 40

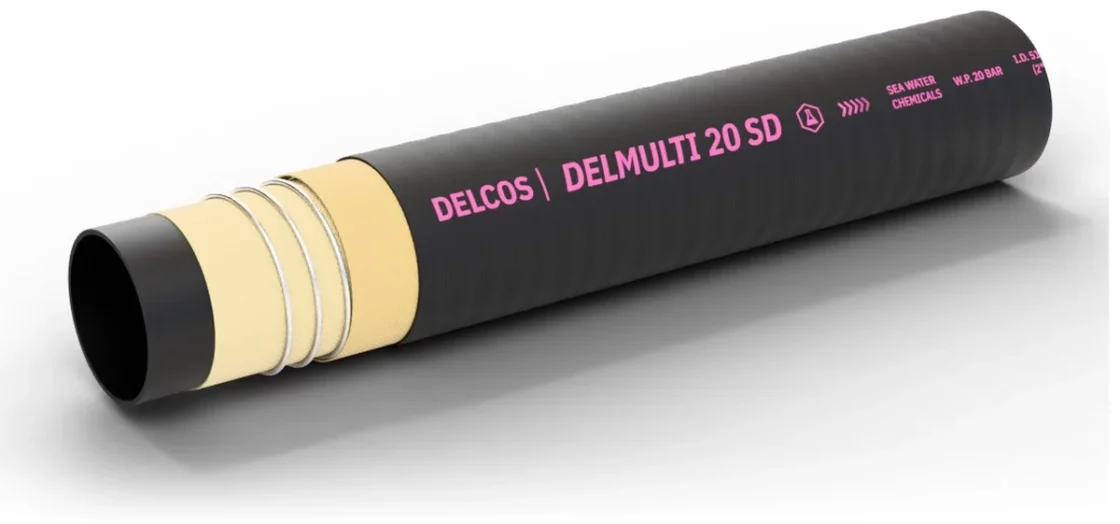

Construction
- Inner tube
- EPDM rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, smooth, cloth impression, resistant to weathering, sea water and heat
DELMULTI 20 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 25 | 822025036 | 36 | 20 | 60 | 0.9 | 125 | 0.85 | 40 |
| 32 | 822032044 | 44 | 20 | 60 | 0.9 | 160 | 1.1 | 40 |
| 35 | 822035046 | 46 | 20 | 60 | 0.9 | 170 | 1.18 | 40 |
| 38 | 822038052 | 52 | 20 | 60 | 0.9 | 190 | 1.25 | 40 |
| 45 | 822045058 | 58 | 20 | 60 | 0.9 | 205 | 1.65 | 40 |
| 51 | 822051062 | 62 | 20 | 60 | 0.9 | 255 | 1.84 | 40 |
| 63.5 | 822063078 | 78 | 20 | 60 | 0.9 | 315 | 2.52 | 40 |
| 76 | 822076092 | 92 | 20 | 60 | 0.9 | 380 | 3.25 | 40 |
| 102 | 822102120 | 120 | 20 | 60 | 0.9 | 510 | 4.17 | 40 |
| 127 | 822127146 | 146 | 20 | 60 | 0.9 | 620 | 7.8 | 40 |
| 152 | 822152172 | 172 | 20 | 60 | 0.8 | 820 | 11.25 | 40 |
| 203 | 822203225 | 225 | 20 | 60 | 0.7 | 1100 | 14.25 | 40 |
| 203 | 822203230 | 230 | 20 | 60 | 0.7 | 1100 | 14.25 | 40 |
Application and limits
- Application
- Multipurpose EPDM suction and delivery hose for chemicals, hot water and sea water at up to 20 bar.
- Features
- Heat and sea water resistant cover, vacuum resistant, up to +120 °C
- Limits
- Operating temperature from −40 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
