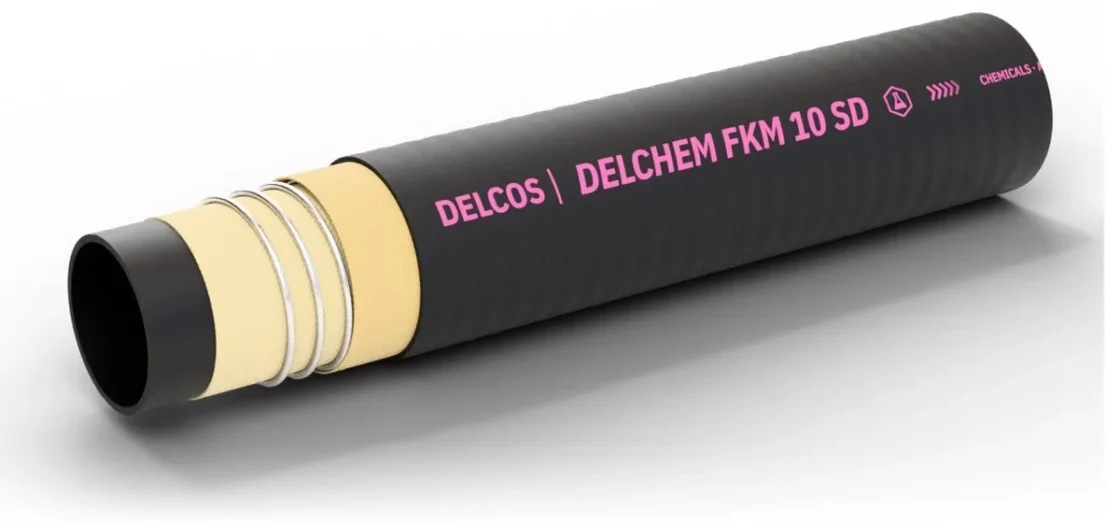

DELCHEM FKM 10 SD hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM FKM 10 SD FKM suction and delivery hose for strong acids

FKM suction and delivery hose for aggressive chemicals and highly concentrated acids. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −35 to +100 °C.

Inner diameter: 19–102 mm
Working pressure: up to 10 bar
Mode: pressure and suction
Temperature: −35…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5, 76, 102
Working pressure, bar: 10
Medium: Acids, chemicals
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −35…+100
Tube material: FKM
Coil length, m: 40

Construction

Inner tube: FKM rubber, black, smooth
Reinforcement: High strength synthetic textile plies, steel helix
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, weathering, oils and chemicals

DELCHEM FKM 10 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	833019031	31	10	40	0.9	85	0.74	40
25	833025037	37	10	40	0.9	112	0.96	40
32	833032044	44	10	40	0.9	144	1.25	40
38	833038051	51	10	40	0.9	171	1.4	40
51	833051067	67	10	40	0.9	229	2.15	40
63.5	833063080	80	10	40	0.7	317	2.6	40
76	833076092	92	10	40	0.7	380	3.2	40
102	833102118	118	10	40	0.7	510	4.6	40

Application and limits

Application: FKM suction and delivery hose for aggressive chemicals and highly concentrated acids.
Features: Vacuum resistant, up to +100 °C
Limits: Operating temperature from −35 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
