DELVAC LITE Light suction hose for air, fumes and wood chips

Very light multipurpose suction hose for air, fumes and wood chips; corrugated cover. Inner diameter 25–203 mm, temperature from −40 to +90 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 25, 32, 38, 40, 45, 51, 60, 63.5, 70, 76, 80, 90, 102, 110, 120, 127, 152, 160, 180, 203
Medium: Air, fumes, wood chips
Mode: Suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −40…+90
Tube material: Synthetic and natural rubber
Coil length, m: 20, 40

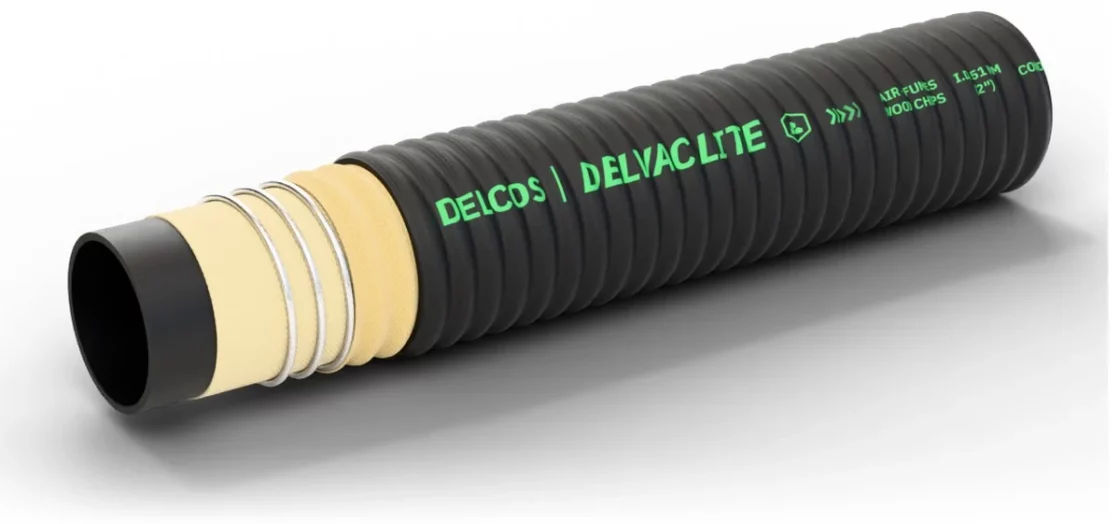

Inner tube: NR/SBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω), very thin and light
Reinforcement: High strength synthetic textile plies, steel helix
Cover: NR/SBR rubber, black, corrugated, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
25	917025000	0.9	30	0.39	40
32	917032000	0.9	40	0.55	40
38	917038000	0.9	50	0.44	40
40	917040000	0.9	60	0.68	40
45	917045000	0.9	66	0.75	40
51	917051000	0.9	77	0.85	40
60	917060000	0.9	80	1.05	40
63.5	917063000	0.9	83	1.1	40
70	917070000	0.9	90	1.21	40
76	917076000	0.9	97	1.31	40
80	917080000	0.9	102	1.37	40
90	917090000	0.9	107	1.54	40
102	917102000	0.9	110	1.78	40
110	917110000	0.9	130	1.92	40
120	917120000	0.7	140	2.13	40
127	917127000	0.7	165	2.25	40
152	917152000	0.4	242	2.82	20, 40
160	917160000	0.3	250	3.05	20
180	917180000	0.25	260	3.33	20
203	917203000	0.15	286	3.93	20, 40

Application: Very light multipurpose suction hose for air, fumes and wood chips; corrugated cover.
Features: Light weight, very flexible
Limits: Operating temperature from −40 to +90 °C.
Permissible vacuum depends on the inner diameter — see the table.
