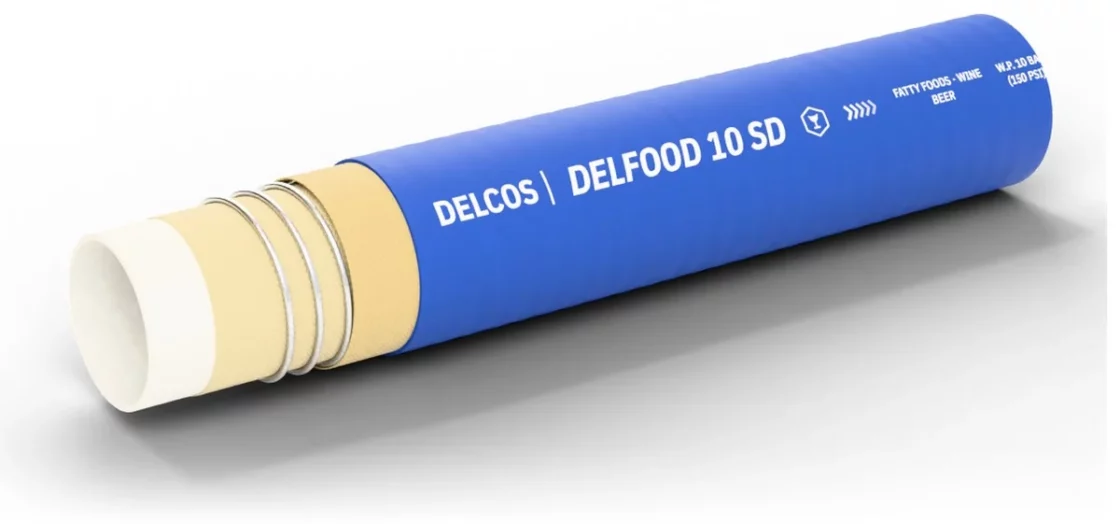

DELFOOD 10 SD hose with layers partly removed: inner tube, reinforcement and cover

DELFOOD 10 SD Multipurpose food suction and delivery hose up to +140 °C

Multipurpose suction and delivery hose for fatty foods, wine, beer, potable water and other foods; EPDM inner tube up to +140 °C. Inner diameter 19–152 mm, working pressure up to 10 bar, temperature from −40 to +140 °C.

Inner diameter: 19–152 mm
Working pressure: up to 10 bar
Mode: pressure and suction
Temperature: −40…+140 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 30, 32, 38, 45, 51, 60, 63.5, 65, 76, 90, 102, 152
Working pressure, bar: 10
Medium: Beer, fatty foods, potable water, wine
Mode: Pressure and suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −40…+140
Tube material: EPDM
Coil length, m: 40, 61

Construction

Inner tube: EPDM rubber, white, smooth, food quality, odourless and tasteless
Reinforcement: High strength synthetic textile plies, steel helix
Cover: EPDM rubber, blue, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELFOOD 10 SD sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
19	737019029	29	10	30	0.9	80	0.61	40, 61
25	737025035	35	10	30	0.9	125	0.76	40, 61
30	737030042	42	10	30	0.9	150	1.13	40
32	737032044	44	10	30	0.9	160	1.2	40, 61
38	737038050	50	10	30	0.9	190	1.38	40, 61
45	737045057	57	10	30	0.9	230	1.61	40
51	737051064	64	10	30	0.9	255	1.9	40, 61
60	737060073	73	10	30	0.9	300	2.21	40
63.5	737063077	77	10	30	0.9	320	2.25	40, 61
65	737065079	79	10	30	0.9	325	2.3	40
76	737076089	89	10	30	0.9	440	2.65	40, 61
90	737090104	104	10	30	0.9	460	3.47	40
102	737102118	118	10	30	0.9	560	4.33	40, 61
152	737152172	172	10	30	0.9	820	8.21	61

Application and limits

Application: Multipurpose suction and delivery hose for fatty foods, wine, beer, potable water and other foods; EPDM inner tube up to +140 °C.
Features: Odourless and tasteless inner tube, steam sterilisable
Limits: Operating temperature from −40 to +140 °C.
Sterilisation at up to 110 °C for max. 30 min.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
