DELMARINE EXHAUST 3 SD Marine wet exhaust and cooling water hose
Flexible suction and delivery hose for engine cooling water and wet exhaust gases on leisure boats up to 24 m. Inner diameter 25–302 mm, working pressure up to 3 bar, temperature from −30 to +120 °C.
- Inner diameter
- 25–302 mm
- Working pressure
- up to 3 bar
- Mode
- pressure and suction
- Temperature
- −30…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 25, 30, 35, 40, 45, 51, 55, 60, 70, 76, 80, 90, 102, 127, 130, 152, 203, 254, 302
- Working pressure, bar
- 3
- Medium
- Exhaust gases, sea water, water
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −30…+120
- Tube material
- NBR/PVC
- Coil length, m
- 10, 12, 20, 40

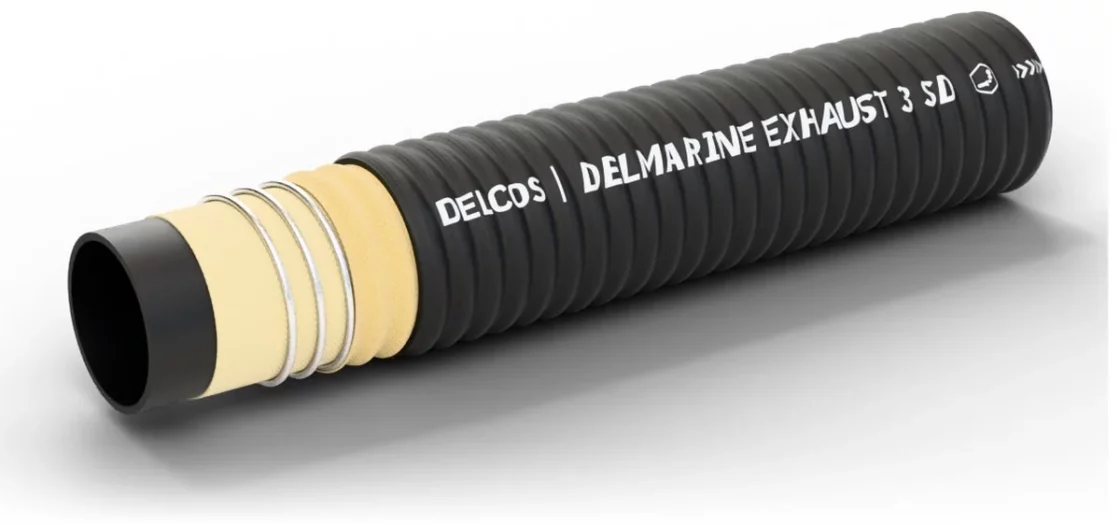

Construction
- Inner tube
- NBR/PVC rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Chloroprene rubber (CR), black, flat corrugated, cloth impression, self-extinguishing, resistant to weathering, fuels and heat
DELMARINE EXHAUST 3 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 25 | 683025000 | 3 | 10 | 0.7 | 45 | 0.9 | 10, 20, 40 |
| 30 | 683030000 | 3 | 10 | 0.7 | 50 | 1 | 10, 20, 40 |
| 35 | 683035000 | 3 | 10 | 0.7 | 55 | 1.1 | 10, 20, 40 |
| 40 | 683040000 | 3 | 10 | 0.7 | 60 | 1.2 | 10, 20, 40 |
| 45 | 683045000 | 3 | 10 | 0.7 | 65 | 1.3 | 10, 20, 40 |
| 51 | 683051000 | 3 | 10 | 0.7 | 70 | 1.5 | 10, 20, 40 |
| 55 | 683055000 | 3 | 10 | 0.7 | 70 | 1.8 | 10, 20, 40 |
| 60 | 683060000 | 3 | 10 | 0.7 | 80 | 2 | 10, 20, 40 |
| 70 | 683070000 | 3 | 10 | 0.7 | 87 | 2.3 | 10, 20, 40 |
| 76 | 683076000 | 3 | 10 | 0.7 | 90 | 2.4 | 10, 20, 40 |
| 80 | 683080000 | 3 | 10 | 0.7 | 100 | 2.57 | 10, 20, 40 |
| 90 | 683090000 | 3 | 10 | 0.7 | 120 | 3.34 | 10, 20, 40 |
| 102 | 683102000 | 3 | 10 | 0.7 | 150 | 3.6 | 10, 20, 40 |
| 127 | 683127000 | 3 | 10 | 0.7 | 180 | 5 | 10, 20, 40 |
| 130 | 683130000 | 3 | 10 | 0.7 | 200 | 5.44 | 10, 20, 40 |
| 152 | 683152000 | 3 | 10 | 0.7 | 350 | 6.12 | 10, 20, 40 |
| 203 | 683203000 | 3 | 10 | 0.7 | 610 | 10.01 | 10, 20, 40 |
| 254 | 683254000 | 3 | 10 | 0.7 | 770 | 15.48 | 10, 20 |
| 302 | 683302000 | 3 | 10 | 0.7 | 1000 | 19.95 | 12 |
Application and limits
- Application
- Flexible suction and delivery hose for engine cooling water and wet exhaust gases on leisure boats up to 24 m.
- Features
- Flat corrugated cover for flexibility, self-extinguishing cover
- Limits
- Operating temperature from −30 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
- For leisure boats up to 24 m long.
