DELPHARMA FEP-SIL 10 SD FEP lined silicone hose for pharmaceutical and food products
Suction and delivery hose with a FEP inner tube and silicone cover for pharmaceutical, cosmetic and food products, up to +170 °C. Inner diameter 19–76 mm, working pressure up to 10 bar, temperature from −60 to +170 °C.
- Inner diameter
- 19–76 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −60…+170 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 76
- Working pressure, bar
- 10
- Medium
- Cosmetic products, food products, pharmaceutical products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −60…+170
- Tube material
- FEP
- Coil length, m
- 20

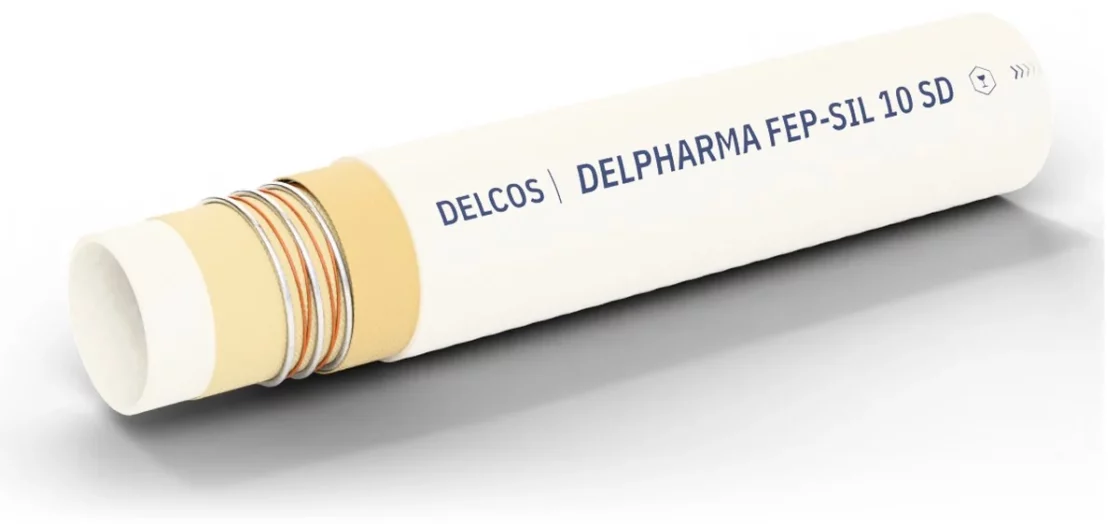

Construction
- Inner tube
- FEP fluoropolymer, white, glossy, non-conductive
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Silicone rubber (VMQ), white, smooth, glossy, cloth impression, resistant to abrasion and weathering
- Electrical properties
- Two crossed copper wires for grounding
DELPHARMA FEP-SIL 10 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 772019031 | 31 | 10 | 30 | 0.7 | 125 | 0.63 | 20 |
| 25 | 772025037 | 37 | 10 | 30 | 0.7 | 150 | 0.79 | 20 |
| 32 | 772032044 | 44 | 10 | 30 | 0.7 | 190 | 1 | 20 |
| 38 | 772038051 | 51 | 10 | 30 | 0.7 | 225 | 1.26 | 20 |
| 51 | 772051067 | 67 | 10 | 30 | 0.7 | 290 | 1.95 | 20 |
| 63.5 | 772063080 | 80 | 10 | 30 | 0.7 | 370 | 2.51 | 20 |
| 76 | 772076092 | 92 | 10 | 30 | 0.7 | 400 | 3.08 | 20 |
Application and limits
- Application
- Suction and delivery hose with a FEP inner tube and silicone cover for pharmaceutical, cosmetic and food products, up to +170 °C.
- Features
- Two crossed copper wires for grounding, vacuum resistant, up to +170 °C
- Limits
- Operating temperature from −60 to +170 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
