DELVAC Suction hose for air, fumes and wood chips

Multipurpose suction hose for air, fumes and wood chips; corrugated cover. Inner diameter 30–203 mm, temperature from −30 to +90 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 30, 38, 40, 51, 60, 63.5, 70, 76, 80, 90, 102, 110, 120, 127, 152, 203
Medium: Air, fumes, wood chips
Mode: Suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −30…+90
Tube material: Synthetic and natural rubber
Coil length, m: 20, 40

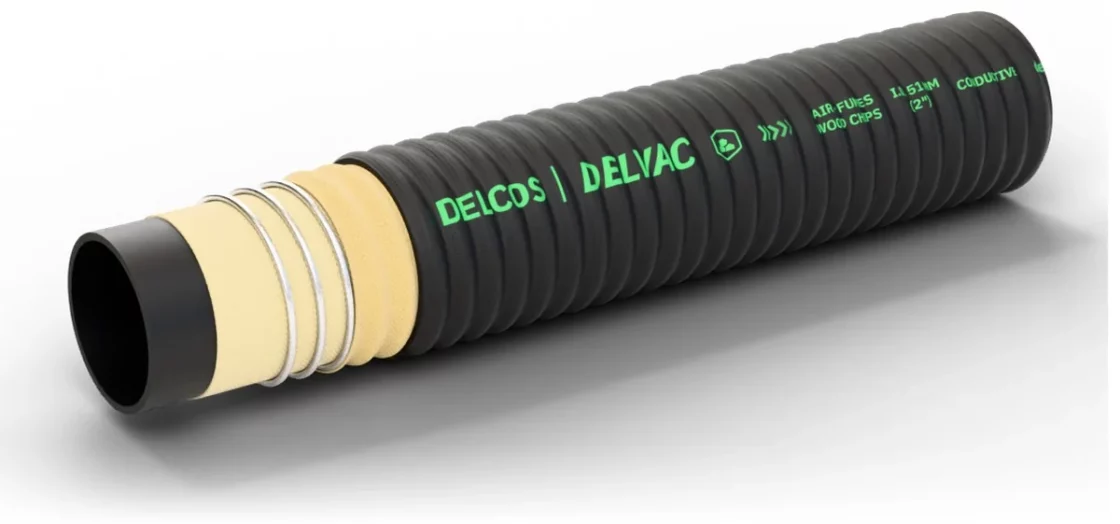

Inner tube: NR/SBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies, steel helix
Cover: NR/SBR rubber, black, corrugated, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
30	918030000	0.9	38	0.53	40
38	918038000	0.9	48	0.69	40
40	918040000	0.9	57	0.72	40
51	918051000	0.9	74	1.05	40
60	918060000	0.9	76	1.11	40
63.5	918063000	0.9	79	1.17	40
70	918070000	0.9	86	1.25	40
76	918076000	0.9	93	1.64	40
80	918080000	0.9	97	1.73	40
90	918090000	0.9	102	2.06	40
102	918102000	0.9	105	2.31	40
110	918110000	0.9	124	2.43	40
120	918120000	0.8	133	2.72	40
127	918127000	0.7	158	2.86	20, 40
152	918152000	0.4	230	3.79	20, 40
203	918203000	0.2	273	5.24	20, 40

Application: Multipurpose suction hose for air, fumes and wood chips; corrugated cover.
Features: Very flexible, conductive inner tube, vacuum resistant
Limits: Operating temperature from −30 to +90 °C.
Permissible vacuum depends on the inner diameter — see the table.
