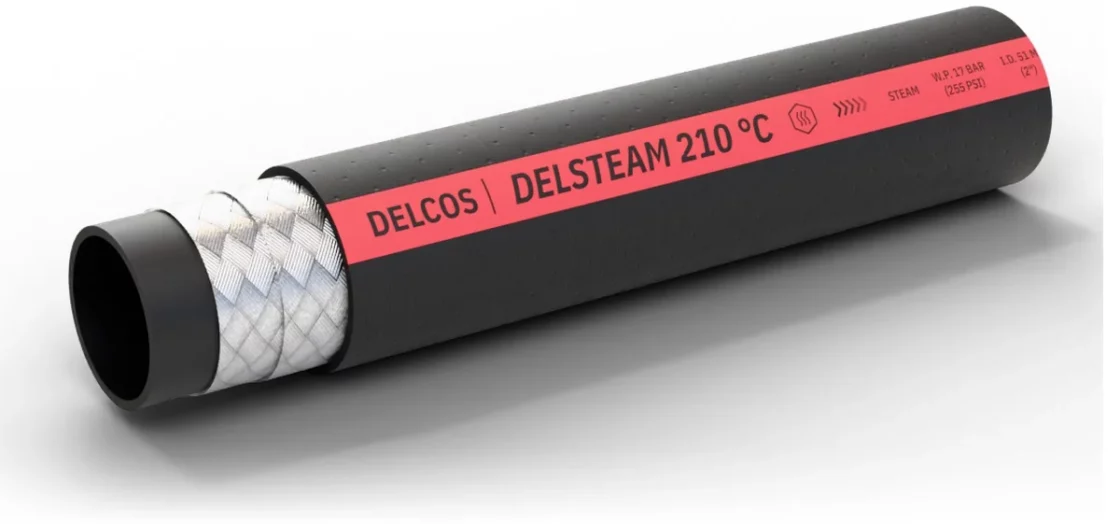

DELSTEAM 210 °C hose with layers partly removed: inner tube, reinforcement and cover

DELSTEAM 210 °C High pressure steam hose, 17 bar

Delivery hose for high pressure saturated steam: steam cleaning of tanks and pipelines in the chemical industry. Inner diameter 10–102 mm, working pressure up to 17 bar, temperature from −40 to +210 °C.

Inner diameter: 10–102 mm
Working pressure: up to 17 bar
Mode: pressure only
Temperature: −40…+210 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 10, 13, 16, 19, 25, 32, 38, 51, 63, 76, 102
Working pressure, bar: 17
Medium: Saturated steam
Mode: Pressure
Reinforcement: Steel wire
Temperature, °C: −40…+210
Tube material: EPM
Coil length, m: 40, 61

Construction

Inner tube: EPM rubber, black, smooth
Reinforcement: High tensile steel wire
Cover: EPM rubber, black, smooth, pin pricked, cloth impression, resistant to abrasion, ozone and weathering

DELSTEAM 210 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
10	700010021	21	17	170	110	0.49	40
13	700013025	25	17	170	120	0.53	40
16	700016028	28	17	170	155	0.6	40, 61
19	700019032	32	17	170	185	0.76	40, 61
25	700025038	38	17	170	240	0.98	40, 61
32	700032046	46	17	170	330	1.29	40, 61
38	700038054	54	17	170	390	1.76	40, 61
51	700051067	67	17	170	520	2.18	40, 61
63	700063083	83	17	170	640	3.4	40, 61
76	700076096	96	17	170	745	4.35	40, 61
102	700102124	124	17	170	990	7	40, 61

Application and limits

Application: Delivery hose for high pressure saturated steam: steam cleaning of tanks and pipelines in the chemical industry.
Features: Pin pricked cover, steel reinforcement, up to +210 °C
Limits: Operating temperature from −40 to +210 °C.
Short-term peaks up to +232 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Drain the hose after use.
ID 10 mm has a red cover; the other sizes are also available with a red cover.
For ID 19–51 mm a version rated 18 bar is also available, with a standard or an oil resistant cover.
