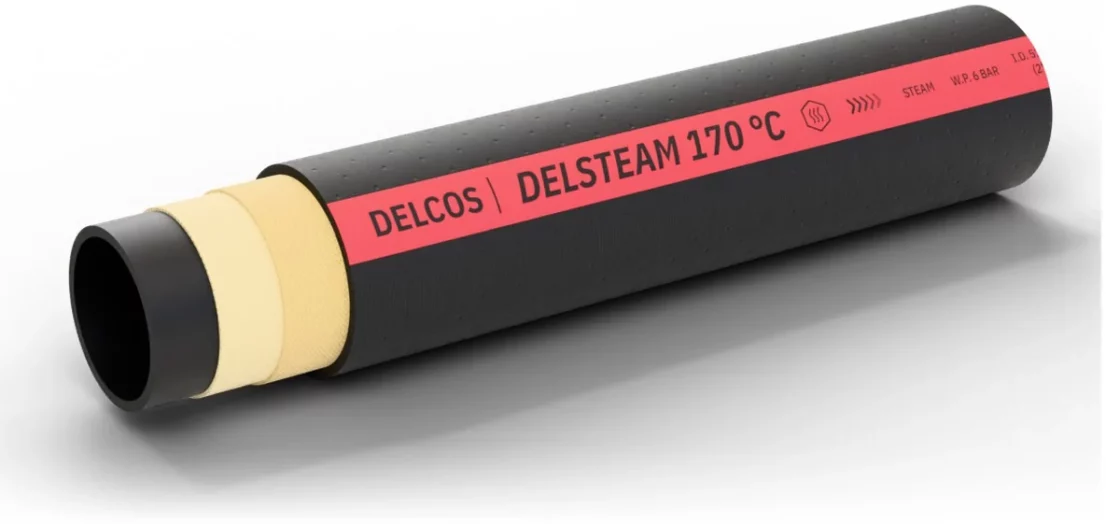

DELSTEAM 170 °C hose with layers partly removed: inner tube, reinforcement and cover

DELSTEAM 170 °C Low pressure steam hose

Delivery hose for low pressure saturated steam: steam cleaning of tanks and pipelines in industry. Inner diameter 13–102 mm, working pressure up to 6 bar, temperature from −40 to +170 °C.

Inner diameter: 13–102 mm
Working pressure: up to 6 bar
Mode: pressure only
Temperature: −40…+170 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 19, 25, 32, 38, 51, 63, 76, 102
Working pressure, bar: 6
Medium: Hot water, saturated steam
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+170
Tube material: EPM
Coil length, m: 40, 61

Construction

Inner tube: EPM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Synthetic rubber, black, smooth, pin pricked, cloth impression, resistant to abrasion, ozone and weathering
Electrical properties: Two crossed copper wires for grounding

DELSTEAM 170 °C sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	701013025	25	6	60	0.43	40
16	701016030	30	6	60	0.6	40
19	701019033	33	6	60	0.66	40, 61
25	701025040	40	6	60	0.9	40, 61
32	701032048	48	6	60	1.11	40, 61
38	701038054	54	6	60	1.28	40, 61
51	701051069	69	6	60	1.89	40, 61
63	701063081	81	6	60	2.23	40, 61
76	701076094	94	6	60	2.76	40, 61
102	701102122	122	6	60	4.02	40, 61

Application and limits

Application: Delivery hose for low pressure saturated steam: steam cleaning of tanks and pipelines in industry.
Features: Pin pricked cover, two crossed copper wires for grounding, up to +170 °C
Limits: Operating temperature from −40 to +170 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Also available with an oil resistant cover.
