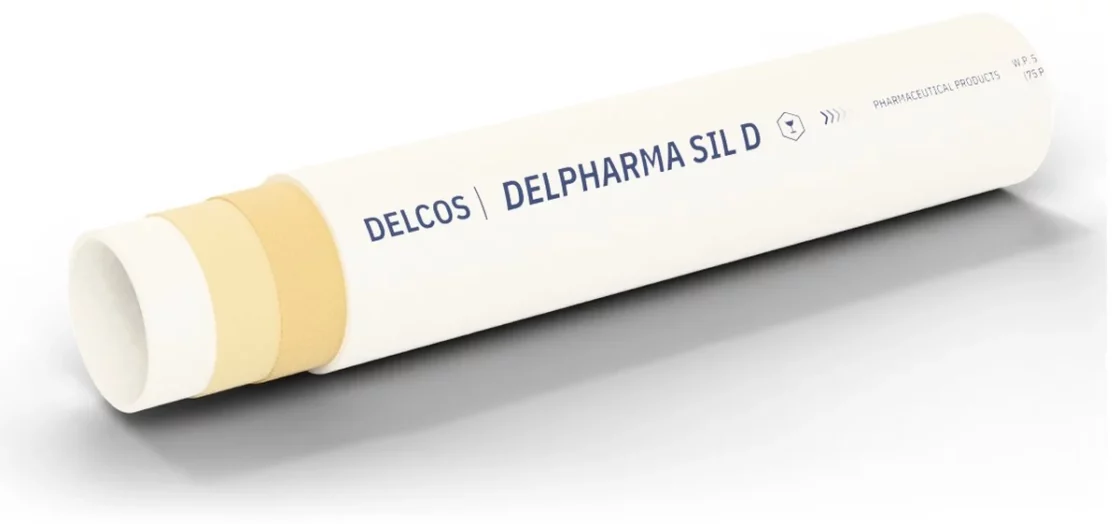

DELPHARMA SIL D hose with layers partly removed: inner tube, reinforcement and cover

DELPHARMA SIL D Silicone delivery hose for pharmaceutical and food products

Silicone delivery hose for pharmaceutical, cosmetic and food products at very high temperatures, up to +200 °C. Inner diameter 19–63.5 mm, working pressure up to 5 bar, temperature from −50 to +200 °C.

Inner diameter: 19–63.5 mm
Working pressure: up to 5 bar
Mode: pressure only
Temperature: −50…+200 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 19, 25, 32, 38, 51, 63.5
Working pressure, bar: 5
Medium: Cosmetic products, food products, pharmaceutical products
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −50…+200
Tube material: Silicone (VMQ)
Coil length, m: 10, 20

Construction

Inner tube: Silicone rubber (VMQ), white, smooth, food quality, odourless and tasteless
Reinforcement: High strength synthetic textile plies
Cover: Silicone rubber (VMQ), white, smooth, glossy, cloth impression, resistant to abrasion and weathering

DELPHARMA SIL D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
19	770019030	30	5	15	0.53	10, 20
25	770025037	37	5	15	0.73	10, 20
32	770032043	43	5	15	0.81	10, 20
38	770038050	50	5	15	1.12	10, 20
51	770051064	64	5	15	1.65	10, 20
63.5	770063078	78	5	15	1.83	10, 20

Application and limits

Application: Silicone delivery hose for pharmaceutical, cosmetic and food products at very high temperatures, up to +200 °C.
Features: Odourless and tasteless inner tube, up to +200 °C
Limits: Operating temperature from −50 to +200 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
