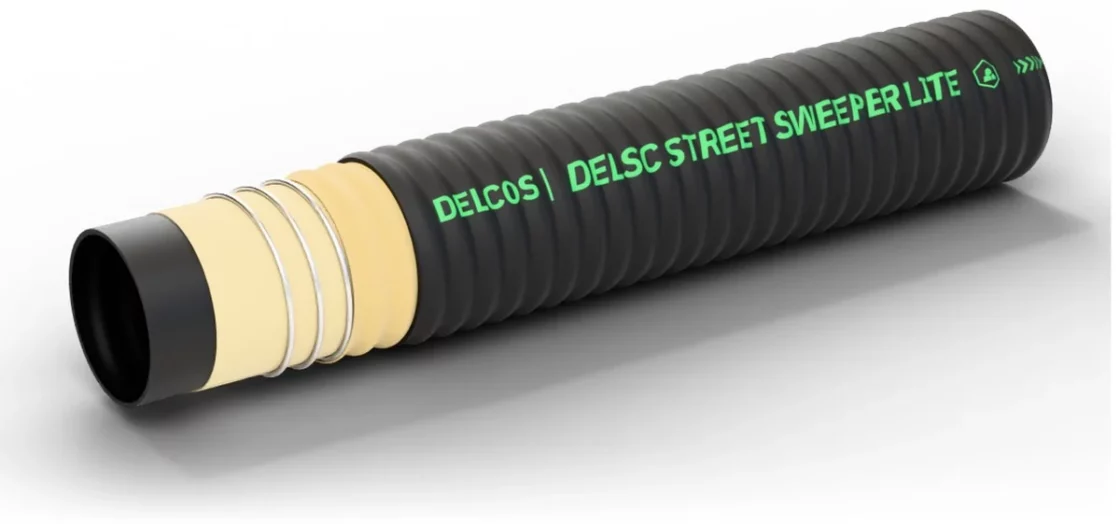

DELSC STREET SWEEPER LITE hose with layers partly removed: inner tube, reinforcement and cover

DELSC STREET SWEEPER LITE Compressible suction hose for street sweepers

Very flexible and compressible suction hose for abrasive granulates and powders on street sweepers and industrial cleaning machines; compensates misaligned connections. Inner diameter 102–305 mm, temperature from −40 to +70 °C.

Inner diameter: 102–305 mm
Mode: suction
Temperature: −40…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 102, 127, 152, 203, 220, 254, 305
Medium: Abrasive media, granulates, leaves, grass, debris
Mode: Suction
Reinforcement: Textile cord, steel helix
Temperature, °C: −40…+70
Tube material: Synthetic and natural rubber

Construction

Inner tube: NR/SBR rubber, black, corrugated, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies, steel helix
Cover: NR/SBR rubber, black, corrugated, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover

DELSC STREET SWEEPER LITE sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
102	920102000	0.7	350	3	on request
127	920127000	0.7	438	2.5	on request
152	920152000	0.7	525	3.6	on request
203	920203000	0.6	700	5.57	on request
220	920220000	0.6	770	6.11	on request
254	920254000	0.5	850	7.6	on request
305	920305000	0.3	1050	10	on request

Application and limits

Application: Very flexible and compressible suction hose for abrasive granulates and powders on street sweepers and industrial cleaning machines; compensates misaligned connections.
Features: Very flexible, compressible
Limits: Operating temperature from −40 to +70 °C.
Permissible vacuum depends on the inner diameter — see the table.
