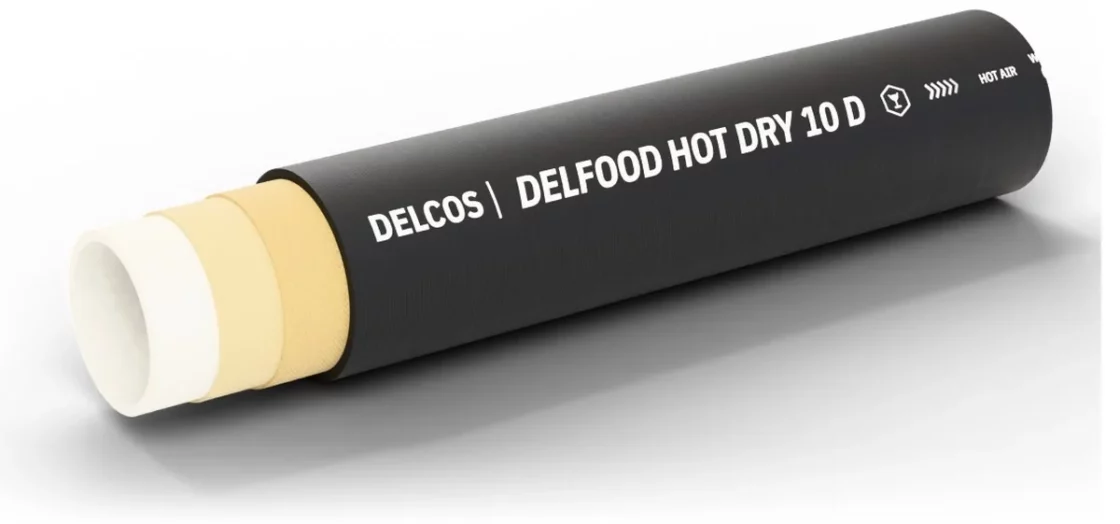

DELFOOD HOT DRY 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELFOOD HOT DRY 10 D Hot air delivery hose for bulk tankers

Delivery hose for hot dry air from the compressors of road tankers (pneumatic unloading): up to +200 °C, peaks up to +240 °C. Inner diameter 25–76 mm, working pressure up to 10 bar, temperature from −40 to +200 °C.

Inner diameter: 25–76 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+200 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 25, 45, 51, 60, 63.5, 76
Working pressure, bar: 10
Medium: Hot air
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+200
Tube material: EPM
Coil length, m: 40, 61

Construction

Inner tube: EPM rubber, white, smooth, food quality, odourless and tasteless
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, black, smooth, cloth impression, resistant to abrasion, ozone and weathering

DELFOOD HOT DRY 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
25	763025041	41	10	30	1.14	40, 61
45	763045063	63	10	30	1.67	40
51	763051069	69	10	30	2.09	40, 61
60	763060078	78	10	30	2.5	40
63.5	763063081	81	10	30	2.63	40, 61
76	763076094	94	10	30	3	40, 61

Application and limits

Application: Delivery hose for hot dry air from the compressors of road tankers (pneumatic unloading): up to +200 °C, peaks up to +240 °C.
Features: Up to +200 °C
Limits: Operating temperature from −40 to +200 °C.
Short-term peaks up to +240 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
