DELSPIRIT 10 SD Spirits hose with UPE inner tube
Suction and delivery hose for alcohol up to 96 %, wine, beer and potable water; clear UPE inner tube. Inner diameter 19–102 mm, working pressure up to 10 bar, temperature from −20 to +80 °C.
- Inner diameter
- 19–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −20…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 76, 102
- Working pressure, bar
- 10
- Medium
- Beer, potable water, spirits, wine
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −20…+80
- Tube material
- UPE (UHMW-PE)
- Coil length, m
- 40, 61

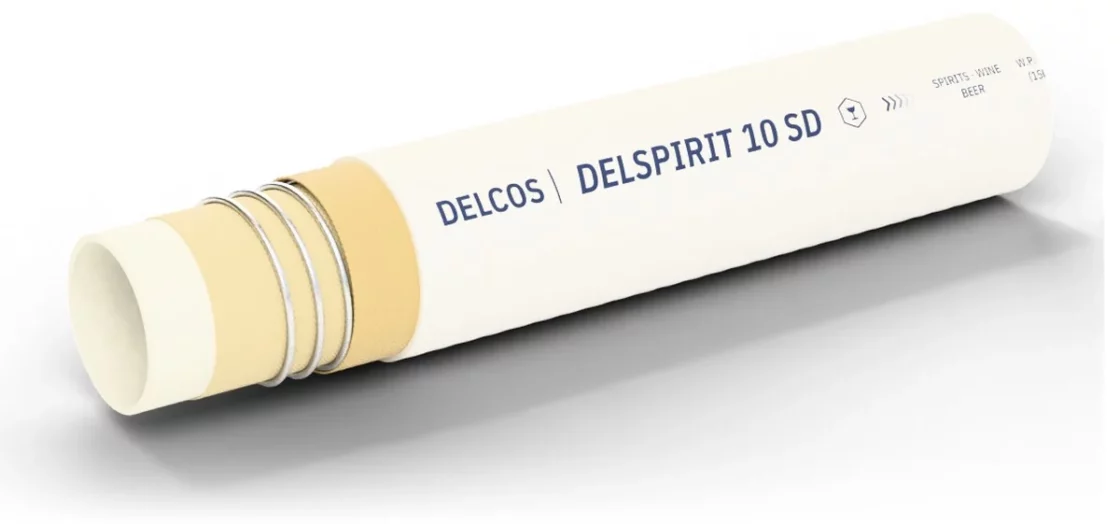

Construction
- Inner tube
- UHMW polyethylene (UPE), translucent, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, white, smooth, cloth impression, resistant to abrasion, ozone and weathering
DELSPIRIT 10 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 748019031 | 31 | 10 | 30 | 0.9 | 90 | 0.7 | 40, 61 |
| 25 | 748025037 | 37 | 10 | 30 | 0.9 | 125 | 1.02 | 40, 61 |
| 32 | 748032044 | 44 | 10 | 30 | 0.9 | 155 | 1.1 | 40, 61 |
| 38 | 748038051 | 51 | 10 | 30 | 0.9 | 190 | 1.4 | 40, 61 |
| 51 | 748051067 | 67 | 10 | 30 | 0.9 | 260 | 2.37 | 40, 61 |
| 63.5 | 748063080 | 80 | 10 | 30 | 0.9 | 360 | 2.91 | 40, 61 |
| 76 | 748076092 | 92 | 10 | 30 | 0.9 | 515 | 3.4 | 40, 61 |
| 102 | 748102118 | 118 | 10 | 30 | 0.9 | 605 | 4.3 | 40, 61 |
Application and limits
- Application
- Suction and delivery hose for alcohol up to 96 %, wine, beer and potable water; clear UPE inner tube.
- Features
- Odourless and tasteless inner tube, steam sterilisable
- Limits
- Operating temperature from −20 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
