DELPLAST 85 D Concrete pump hose with steel wire reinforcement

Concrete pump hose, working pressure 85 bar. Inner diameter 51–152 mm, working pressure up to 85 bar, temperature from −40 to +70 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

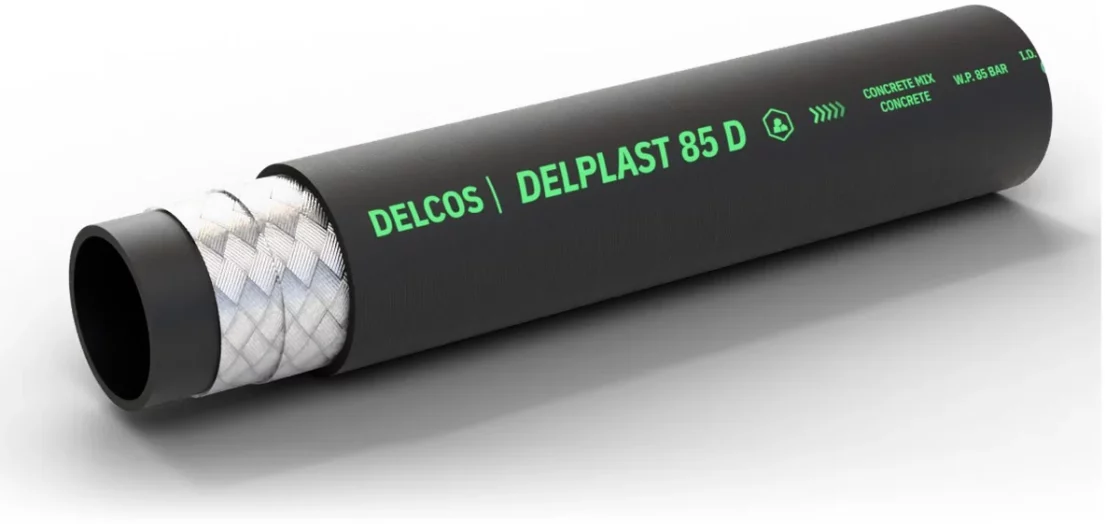

Inner tube: Synthetic rubber, black, smooth, antistatic
Reinforcement: High tensile steel wire
Cover: Synthetic rubber, black, smooth, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Antistatic inner tube; antistatic cover

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Bend radius, mm	Weight, kg/m	Coil length, m
51	907051069	69	85	200	255	2.18	61
63	907063085	85	85	200	260	3.4	61
76	907076100	100	85	200	390	4.65	61
102	907102128	128	85	200	525	7.8	61
127	907127155	155	85	200	655	11	61
152	907152186	186	85	175	780	14.85	61

Application: Concrete pump hose, working pressure 85 bar.
Features: Abrasion resistant, antistatic inner tube, steel reinforcement
Limits: Operating temperature from −40 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
