DELHD S LITE Light suction hose for abrasive materials

Very light and flexible suction hose for stones, sand and debris in industrial cleaning. Inner diameter 51–254 mm, temperature from −30 to +90 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

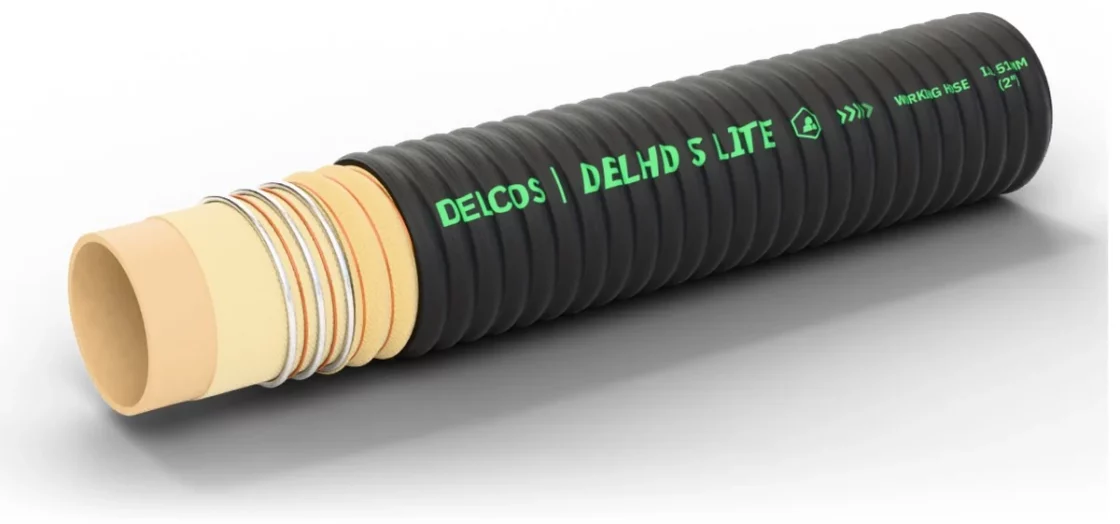

Inner tube: Natural rubber (NR), beige, smooth
Reinforcement: High strength synthetic textile plies, steel helix
Cover: NR/SBR rubber, black, corrugated, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Antistatic cover; two protruding copper wires for grounding

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Vacuum, bar	Bend radius, mm	Weight, kg/m	Coil length, m
51	919051000	0.9	70	1.17	on request
63.5	919063000	0.9	75	1.49	on request
76	919076000	0.9	88	1.79	on request
102	919102000	0.9	100	2.64	on request
127	919127000	0.9	150	3.1	on request
152	919152000	0.9	220	3.92	on request
203	919203000	0.9	260	5.77	on request
254	919254000	0.9	350	9.67	on request

Application: Very light and flexible suction hose for stones, sand and debris in industrial cleaning.
Features: Light weight, very flexible
Limits: Operating temperature from −30 to +90 °C.
Permissible vacuum depends on the inner diameter — see the table.
