DELBREW 12 SD FC Flexible beer and beverage hose, flat corrugated, 12 bar
Very flexible suction and delivery hose for beer, wine, spirits up to 96 % alcohol and soft drinks; butyl (BIIR) inner tube. Inner diameter 32–102 mm, working pressure up to 12 bar, temperature from −40 to +120 °C.
- Inner diameter
- 32–102 mm
- Working pressure
- up to 12 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 32, 38, 51, 63.5, 76, 102
- Working pressure, bar
- 12
- Medium
- Beer, soft drinks, spirits, wine
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+120
- Tube material
- BIIR (butyl rubber)
- Coil length, m
- 40, 61

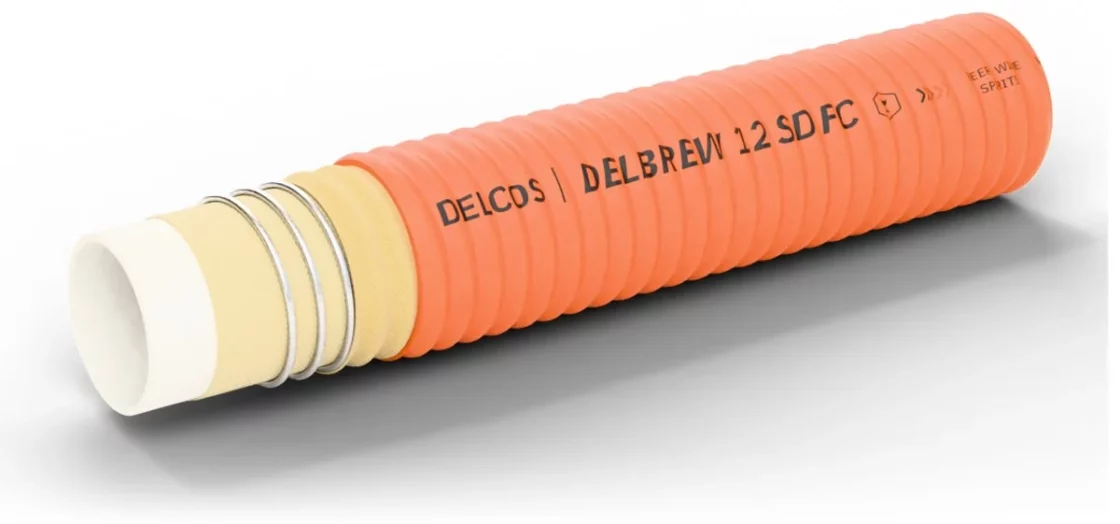

Construction
- Inner tube
- Butyl rubber (BIIR), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber with a glossy UPE finish, orange, flat corrugated, cloth impression, resistant to abrasion, ozone and weathering
DELBREW 12 SD FC sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 32 | 744032000 | 12 | 36 | 0.9 | 115 | 1.04 | 40, 61 |
| 38 | 744038000 | 12 | 36 | 0.9 | 140 | 1.2 | 40, 61 |
| 51 | 744051000 | 12 | 36 | 0.9 | 195 | 1.6 | 40, 61 |
| 63.5 | 744063000 | 12 | 36 | 0.9 | 270 | 3.1 | 40, 61 |
| 76 | 744076000 | 12 | 36 | 0.9 | 285 | 3.6 | 40, 61 |
| 102 | 744102000 | 12 | 36 | 0.9 | 335 | 5 | 40, 61 |
Application and limits
- Application
- Very flexible suction and delivery hose for beer, wine, spirits up to 96 % alcohol and soft drinks; butyl (BIIR) inner tube.
- Features
- Very flexible, odourless and tasteless inner tube
- Limits
- Operating temperature from −40 to +120 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
