DELWINE 10 SD LITE Light wine and juice hose, plastic helix
Light suction and delivery hose for wine, fruit juice and soft drinks with up to 50 % alcohol; EPDM inner tube for non-fatty foods. Inner diameter 38–102 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.
- Inner diameter
- 38–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 38, 51, 63.5, 65, 76, 102
- Working pressure, bar
- 10
- Medium
- Fruit juice, soft drinks, wine
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, plastic helix
- Temperature, °C
- −40…+120
- Tube material
- EPDM
- Coil length, m
- 40, 61

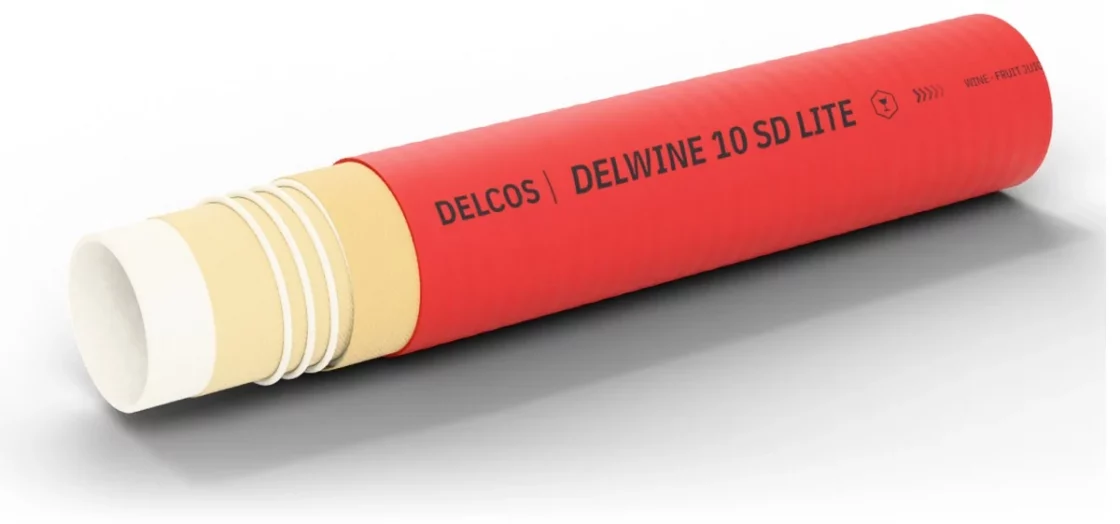

Construction
- Inner tube
- EPDM rubber, white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, plastic helix
- Cover
- EPDM rubber, red, smooth, cloth impression, resistant to abrasion, ozone and weathering
DELWINE 10 SD LITE sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 38 | 747038052 | 52 | 10 | 30 | 0.4 | 228 | 1.32 | 40, 61 |
| 51 | 747051065 | 65 | 10 | 30 | 0.4 | 310 | 1.9 | 40, 61 |
| 63.5 | 747063081 | 81 | 10 | 30 | 0.4 | 375 | 2.75 | 40, 61 |
| 65 | 747065088 | 88 | 10 | 30 | 0.4 | 395 | 3.15 | 40 |
| 76 | 747076098 | 98 | 10 | 30 | 0.4 | 480 | 3.82 | 40, 61 |
| 102 | 747102120 | 120 | 10 | 30 | 0.4 | 670 | 6.42 | 40, 61 |
Application and limits
- Application
- Light suction and delivery hose for wine, fruit juice and soft drinks with up to 50 % alcohol; EPDM inner tube for non-fatty foods.
- Features
- Light weight, odourless and tasteless inner tube
- Limits
- Operating temperature from −40 to +120 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
- Not for fatty foods.
