DELWELD 20 ACETYLENE Acetylene hose for welding
Acetylene line for welding and cutting equipment; red cover. Inner diameter 6–25 mm, working pressure up to 20 bar, temperature from −25 to +80 °C.
- Inner diameter
- 6–25 mm
- Working pressure
- up to 20 bar
- Mode
- pressure only
- Temperature
- −25…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 6, 8, 9, 10, 13, 16, 19, 25
- Working pressure, bar
- 20
- Medium
- Acetylene
- Mode
- Pressure
- Reinforcement
- Textile cord
- Temperature, °C
- −25…+80
- Tube material
- SBR
- Coil length, m
- 50, 100

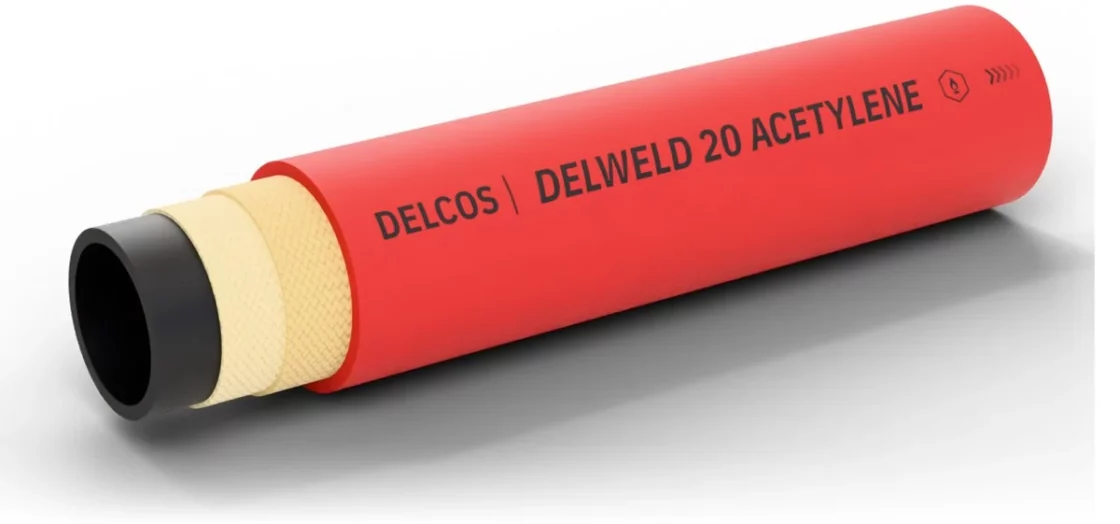

Construction
- Inner tube
- SBR rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies
- Cover
- SBR/EPDM rubber, red, smooth, resistant to abrasion and weathering
DELWELD 20 ACETYLENE sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|
| 6 | 608006013 | 13 | 20 | 60 | 0.16 | 100 |
| 8 | 608008015 | 15 | 20 | 60 | 0.18 | 100 |
| 9 | 608009016 | 16 | 20 | 60 | 0.2 | 100 |
| 10 | 608010017 | 17 | 20 | 60 | 0.21 | 100 |
| 13 | 608013023 | 23 | 20 | 60 | 0.4 | 50 |
| 16 | 608016026 | 26 | 20 | 60 | 0.53 | 50 |
| 19 | 608019030 | 30 | 20 | 60 | 0.62 | 50 |
| 25 | 608025037 | 37 | 20 | 60 | 0.86 | 50 |
Application and limits
- Application
- Acetylene line for welding and cutting equipment; red cover.
- Features
- Supplied in long coils
- Limits
- Operating temperature from −25 to +80 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
