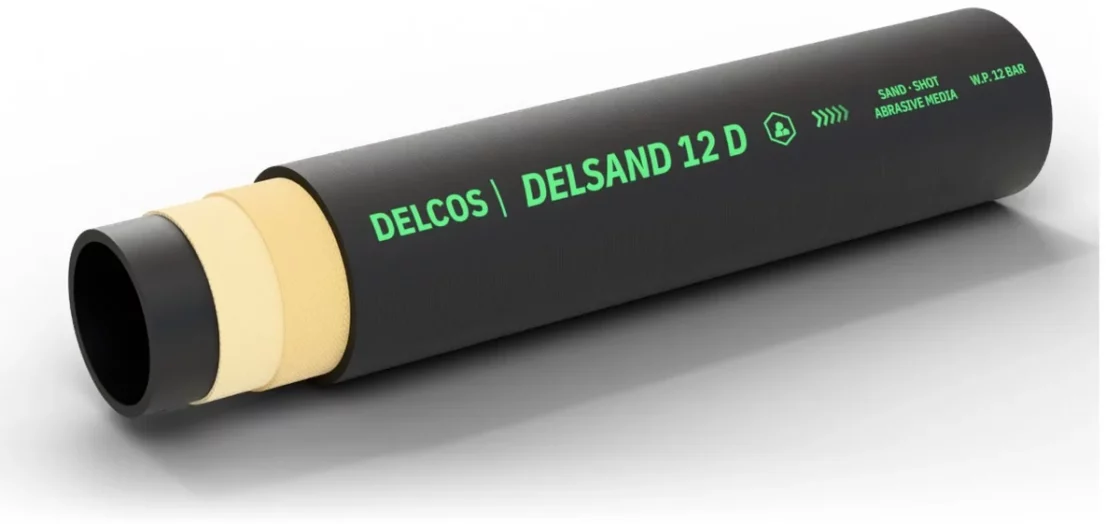

DELSAND 12 D Sand and shot blasting hose

Blasting hose for sand and shot; conductive inner tube. Inner diameter 13–102 mm, working pressure up to 12 bar, temperature from −40 to +70 °C.

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner tube: NR/SBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies
Cover: NR/SBR rubber, black, smooth, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	904013025	25	12	36	0.44	40
16	904016030	30	12	36	0.59	40
19	904019033	33	12	36	0.66	40, 61
25	904025040	40	12	36	0.88	40, 61
30	904030045	45	12	36	1.02	40, 61
32	904032048	48	12	36	1.16	40, 61
38	904038054	54	12	36	1.33	40, 61
40	904040060	60	12	36	1.83	40, 61
51	904051071	71	12	36	2.2	40, 61
60	904060080	80	12	36	2.53	40, 61
65	904065085	85	12	36	2.76	40, 61
80	904080105	105	12	36	4.18	40, 61
90	904090115	115	12	36	4.63	40, 61
102	904102127	127	12	36	5.17	40, 61

Application: Blasting hose for sand and shot; conductive inner tube.
Features: Abrasion resistant, conductive inner tube
Limits: Operating temperature from −40 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
A heavy duty version with higher abrasion resistance is available for ID 13–65 mm.
