DELSTEAM 5 SD GR 120 °C Flexible radiator hose with helix grooved cover
Suction and delivery hose for hot water and coolants in engine cooling and heating systems; very flexible for installation in tight spaces. Inner diameter 13–102 mm, working pressure up to 5 bar, temperature from −40 to +120 °C.
- Inner diameter
- 13–102 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 13, 15, 16, 18, 19, 20, 22, 25, 28, 30, 32, 35, 38, 40, 42, 45, 50, 51, 55, 60, 63.5, 76, 90, 102
- Working pressure, bar
- 5
- Medium
- Coolant, hot water
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+120
- Tube material
- EPDM
- Coil length, m
- 40

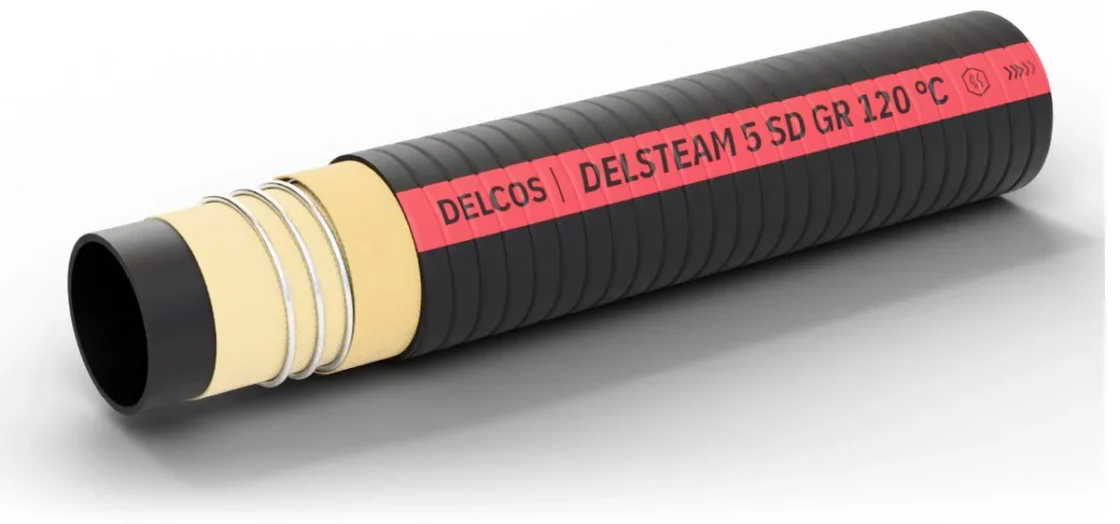

Construction
- Inner tube
- EPDM rubber, black, smooth
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, helix grooved, cloth impression, resistant to abrasion, ozone and weathering
DELSTEAM 5 SD GR 120 °C sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 13 | 642013000 | 5 | 15 | 0.8 | 50 | 0.4 | 40 |
| 15 | 642015000 | 5 | 15 | 0.8 | 55 | 0.42 | 40 |
| 16 | 642016000 | 5 | 15 | 0.8 | 60 | 0.45 | 40 |
| 18 | 642018000 | 5 | 15 | 0.8 | 65 | 0.48 | 40 |
| 19 | 642019000 | 5 | 15 | 0.8 | 70 | 0.5 | 40 |
| 20 | 642020000 | 5 | 15 | 0.8 | 70 | 0.52 | 40 |
| 22 | 642022000 | 5 | 15 | 0.8 | 75 | 0.54 | 40 |
| 25 | 642025000 | 5 | 15 | 0.8 | 85 | 0.58 | 40 |
| 28 | 642028000 | 5 | 15 | 0.8 | 95 | 0.64 | 40 |
| 30 | 642030000 | 5 | 15 | 0.8 | 100 | 0.68 | 40 |
| 32 | 642032000 | 5 | 15 | 0.8 | 105 | 0.73 | 40 |
| 35 | 642035000 | 5 | 15 | 0.8 | 115 | 0.82 | 40 |
| 38 | 642038000 | 5 | 15 | 0.8 | 130 | 0.93 | 40 |
| 40 | 642040000 | 5 | 15 | 0.8 | 135 | 1 | 40 |
| 42 | 642042000 | 5 | 15 | 0.8 | 140 | 1.05 | 40 |
| 45 | 642045000 | 5 | 15 | 0.8 | 150 | 1.18 | 40 |
| 50 | 642050000 | 5 | 15 | 0.8 | 165 | 1.3 | 40 |
| 51 | 642051000 | 5 | 15 | 0.8 | 165 | 1.31 | 40 |
| 55 | 642055000 | 5 | 15 | 0.8 | 180 | 1.5 | 40 |
| 60 | 642060000 | 5 | 15 | 0.8 | 200 | 1.7 | 40 |
| 63.5 | 642063000 | 5 | 15 | 0.8 | 210 | 1.74 | 40 |
| 76 | 642076000 | 5 | 15 | 0.8 | 250 | 2.17 | 40 |
| 90 | 642090000 | 5 | 15 | 0.8 | 300 | 2.57 | 40 |
| 102 | 642102000 | 5 | 15 | 0.8 | 340 | 3.17 | 40 |
Application and limits
- Application
- Suction and delivery hose for hot water and coolants in engine cooling and heating systems; very flexible for installation in tight spaces.
- Features
- Very flexible, vacuum resistant, up to +120 °C
- Limits
- Operating temperature from −40 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
