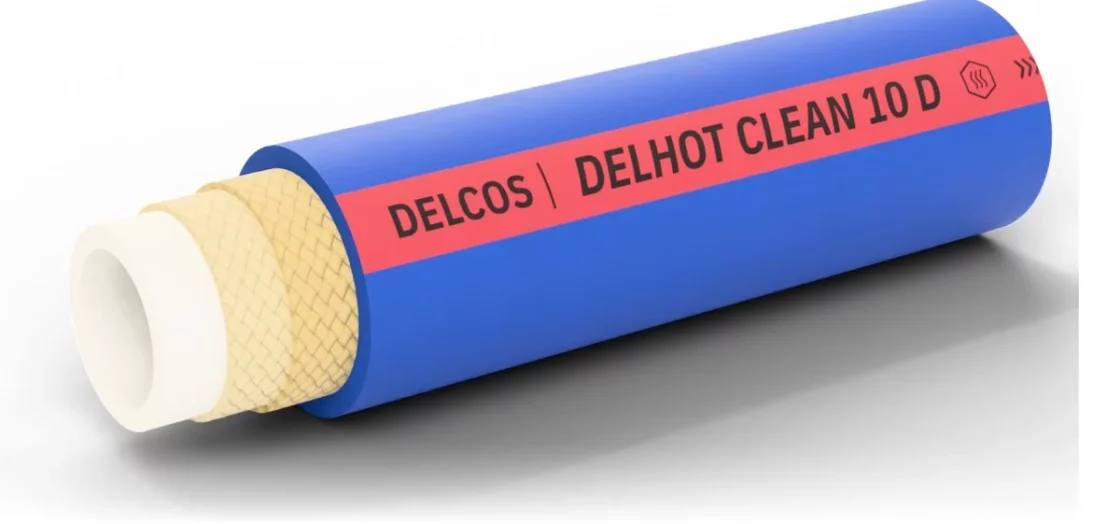

DELHOT CLEAN 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELHOT CLEAN 10 D Food quality hot water hose up to +120 °C, long coils

Delivery hose for hot potable water and detergents in industrial washing machines and for washdown in dairies and poultry farms. Food quality inner tube. Inner diameter 6–13 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.

Inner diameter: 6–13 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −40…+120 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 6, 8, 10, 12, 13
Working pressure, bar: 10
Medium: Detergents, hot water, potable water
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+120
Tube material: EPDM

Construction

Inner tube: EPDM rubber, white, smooth, food quality
Reinforcement: High strength synthetic textile plies
Cover: EPDM rubber, blue, smooth, resistant to abrasion, ozone and weathering, other colours on request

DELHOT CLEAN 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
6	640006012	12	10	30	0.13	≤ 100
8	640008015	15	10	30	0.17	≤ 100
10	640010017	17	10	30	0.18	≤ 100
12	640012019	19.5	10	30	0.23	≤ 100
13	640013023	23	10	30	0.25	≤ 100

Application and limits

Application: Delivery hose for hot potable water and detergents in industrial washing machines and for washdown in dairies and poultry farms. Food quality inner tube.
Features: Supplied in long coils, odourless and tasteless inner tube
Limits: Operating temperature from −40 to +120 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
