DELCHEM PTFE 16 SD PTFE lined chemical suction and delivery hose, 16 bar
Suction and delivery hose with an antistatic PTFE inner tube for chemicals, hydrocarbons and food products, up to +170 °C. Inner diameter 19–50 mm, working pressure up to 16 bar, temperature from −50 to +170 °C.
- Inner diameter
- 19–50 mm
- Working pressure
- up to 16 bar
- Mode
- pressure and suction
- Temperature
- −50…+170 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 50
- Working pressure, bar
- 16
- Medium
- Chemicals, food products, hydrocarbons
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −50…+170
- Tube material
- PTFE
- Coil length, m
- 20

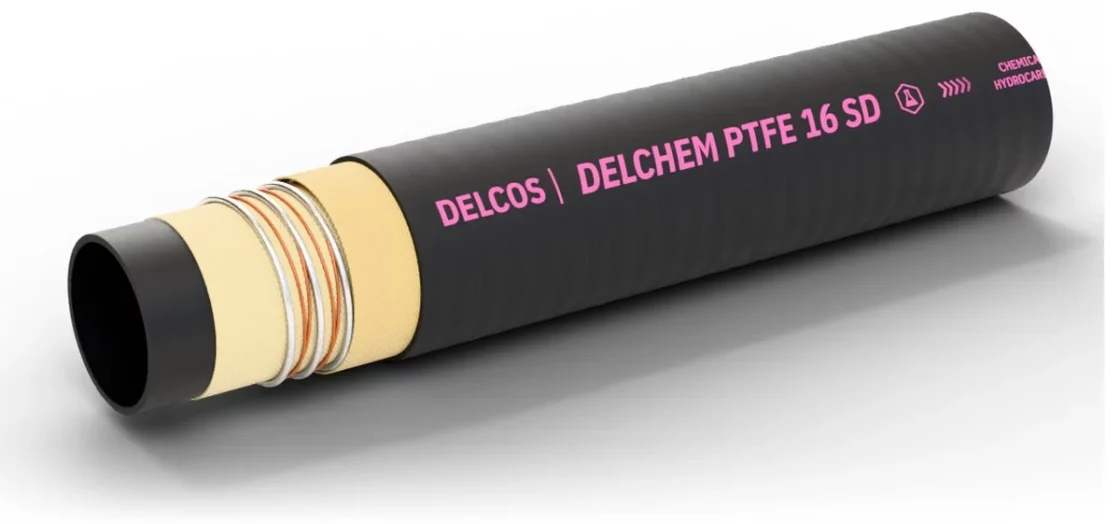

Construction
- Inner tube
- PTFE, black, glossy, antistatic
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, black, smooth, cloth impression, conductive (R ≤ 10⁶ Ω), flame resistant, resistant to ozone, weathering and chemicals
- Electrical properties
- Antistatic inner tube; conductive cover (R ≤ 10⁶ Ω); two crossed copper wires for grounding
DELCHEM PTFE 16 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 831019031 | 31 | 16 | 64 | 0.9 | 135 | 0.5 | 20 |
| 25 | 831025037 | 37 | 16 | 64 | 0.9 | 175 | 0.63 | 20 |
| 32 | 831032044 | 44 | 16 | 64 | 0.9 | 200 | 0.97 | 20 |
| 38 | 831038051 | 51 | 16 | 64 | 0.9 | 250 | 1.28 | 20 |
| 50 | 831050066 | 66 | 16 | 64 | 0.9 | 320 | 2.2 | 20 |
Application and limits
- Application
- Suction and delivery hose with an antistatic PTFE inner tube for chemicals, hydrocarbons and food products, up to +170 °C.
- Features
- Flame resistant cover, two crossed copper wires for grounding
- Limits
- Operating temperature from −50 to +170 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
