DELCOOL 5 SD FC Flexible coolant hose for data centres, flat corrugated
Suction and delivery hose for modern coolants, including OAT coolants, in data centre cooling systems; the very small bend radius suits tight and complex routing. Inner diameter 19–152 mm, working pressure up to 5 bar, temperature from −40 to +120 °C.
- Inner diameter
- 19–152 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 76, 90, 102, 127, 152
- Working pressure, bar
- 5
- Medium
- Coolant
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, metal helix
- Temperature, °C
- −40…+120
- Tube material
- EPM
- Coil length, m
- 40

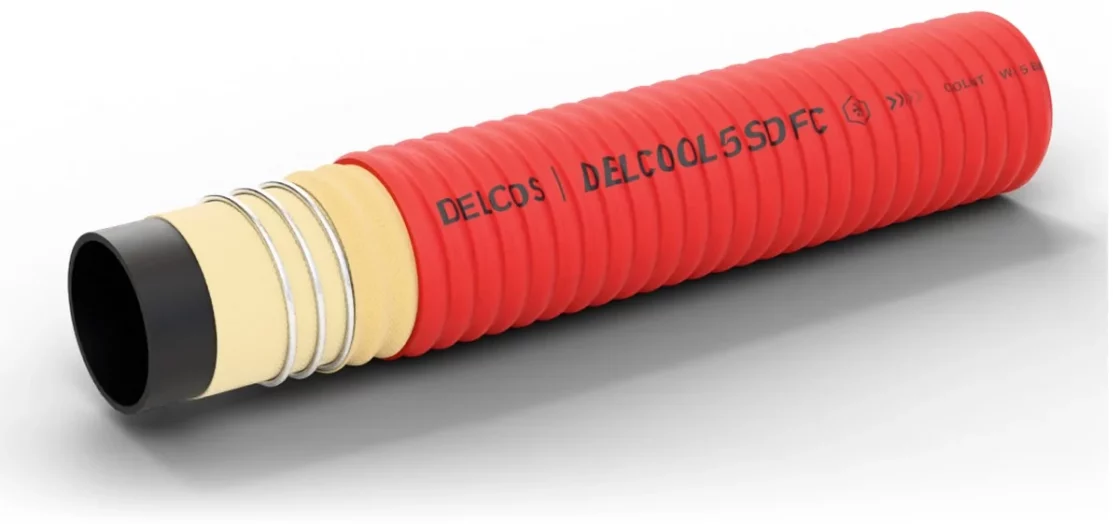

Construction
- Inner tube
- EPM rubber, black, smooth, free of calcium and zinc, peroxide cured
- Reinforcement
- High tenacity synthetic fabric, metal helix
- Cover
- EPDM/CPE rubber, red, flat corrugated, cloth impression, resistant to abrasion and ozone
DELCOOL 5 SD FC sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 19 | 672019000 | 5 | 15 | 0.7 | 20 | 0.4 | 40 |
| 25 | 672025000 | 5 | 15 | 0.7 | 30 | 0.7 | 40 |
| 32 | 672032000 | 5 | 15 | 0.7 | 40 | 0.82 | 40 |
| 38 | 672038000 | 5 | 15 | 0.7 | 45 | 1 | 40 |
| 51 | 672051000 | 5 | 15 | 0.7 | 60 | 1.34 | 40 |
| 63.5 | 672063000 | 5 | 15 | 0.7 | 75 | 1.84 | 40 |
| 76 | 672076000 | 5 | 15 | 0.7 | 85 | 2.32 | 40 |
| 90 | 672090000 | 5 | 15 | 0.7 | 90 | 2.7 | 40 |
| 102 | 672102000 | 5 | 15 | 0.7 | 110 | 3.2 | 40 |
| 127 | 672127000 | 5 | 15 | 0.7 | 145 | 4.5 | 40 |
| 152 | 672152000 | 5 | 15 | 0.7 | 170 | 6.6 | 40 |
Application and limits
- Application
- Suction and delivery hose for modern coolants, including OAT coolants, in data centre cooling systems; the very small bend radius suits tight and complex routing.
- Features
- Very small bend radius, peroxide cured EPM inner tube, free of calcium and zinc, flame retardant cover
- Limits
- Operating temperature from −40 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
