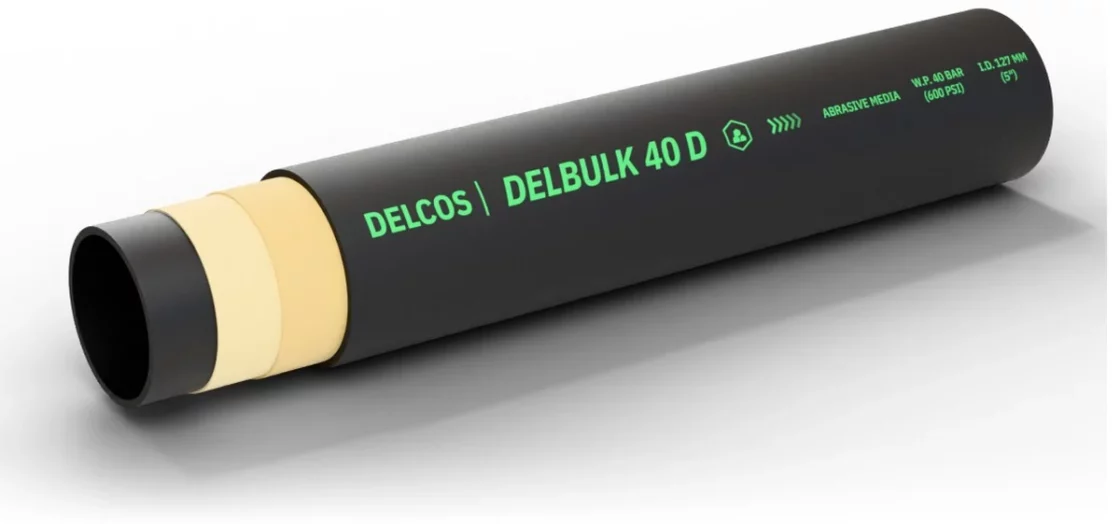

DELBULK 40 D hose with layers partly removed: inner tube, reinforcement and cover

DELBULK 40 D Delivery hose for abrasive bulk materials, 40 bar

Delivery hose for abrasive bulk materials in docks and on oil rigs, working pressure 40 bar. Inner diameter 127–152 mm, working pressure up to 40 bar, temperature from −40 to +70 °C.

Inner diameter: 127–152 mm
Working pressure: up to 40 bar
Mode: pressure only
Temperature: −40…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 127, 152
Working pressure, bar: 40
Medium: Abrasive media
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+70
Tube material: Natural rubber

Construction

Inner tube: Natural rubber (NR), black, smooth, resistant to abrasion
Reinforcement: High tensile synthetic cord
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, oils, grease and sea water
Electrical properties: Two crossed copper wires for grounding

DELBULK 40 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
127	926127160	160	40	160	8.5	≤ 60
152	926152185	185	40	160	10.5	≤ 60

Application and limits

Application: Delivery hose for abrasive bulk materials in docks and on oil rigs, working pressure 40 bar.
Features: Highly abrasion resistant natural rubber inner tube, crossed copper wires for grounding, flame retardant cover, resistant to sea water, oils and ozone
Limits: Operating temperature from −40 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
