DELCOOL 10 SD Coolant hose for data centre cooling
Suction and delivery hose for modern coolants, including OAT (organic acid technology) coolants, in data centre cooling circuits. Inner diameter 25–152 mm, working pressure up to 10 bar, temperature from −40 to +120 °C.
- Inner diameter
- 25–152 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+120 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 25, 32, 38, 51, 63, 76, 102, 152
- Working pressure, bar
- 10
- Medium
- Coolant
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, metal helix
- Temperature, °C
- −40…+120
- Tube material
- EPM
- Coil length, m
- 40

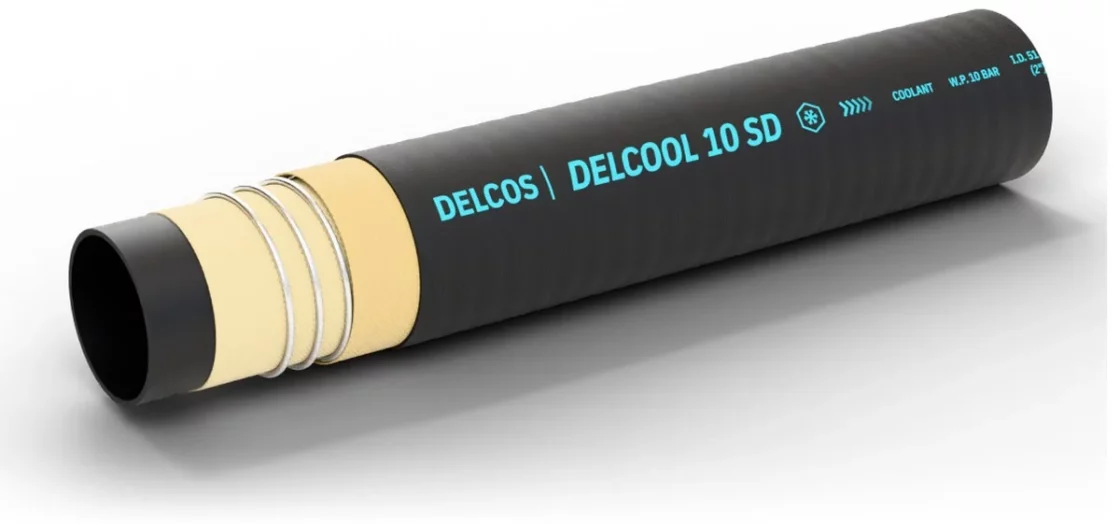

Construction
- Inner tube
- EPM rubber, black, smooth, free of calcium and zinc, peroxide cured
- Reinforcement
- High tenacity synthetic fabric, metal helix
- Cover
- EPDM/CPE rubber, black, smooth, cloth impression, resistant to abrasion and ozone
DELCOOL 10 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 25 | 670025036 | 36 | 10 | 40 | 0.9 | 50 | 0.75 | 40 |
| 32 | 670032044 | 44 | 10 | 40 | 0.9 | 65 | 0.98 | 40 |
| 38 | 670038050 | 50 | 10 | 40 | 0.9 | 75 | 1.25 | 40 |
| 51 | 670051064 | 64 | 10 | 40 | 0.9 | 100 | 1.5 | 40 |
| 63 | 670063076 | 76 | 10 | 40 | 0.9 | 130 | 2.15 | 40 |
| 76 | 670076089 | 89 | 10 | 40 | 0.9 | 160 | 2.65 | 40 |
| 102 | 670102117 | 117 | 10 | 40 | 0.7 | 220 | 4.1 | 40 |
| 152 | 670152172 | 172 | 10 | 40 | 0.7 | 380 | 7 | 40 |
Application and limits
- Application
- Suction and delivery hose for modern coolants, including OAT (organic acid technology) coolants, in data centre cooling circuits.
- Features
- Peroxide cured EPM inner tube, free of calcium and zinc, flame retardant cover
- Limits
- Operating temperature from −40 to +120 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Similar series
Whole category
DELFLEX 10 SD
Heavy duty water suction and delivery hose
ID 19–305 mm · up to 10 bar
DELSTEAM 10 D 120 °C
Hot water and cleaning hose up to +120 °C
ID 10–60 mm · up to 10 bar
Need a quote for DELCOOL 10 SD?
Send us the diameter, length and medium — we will answer your technical questions.
