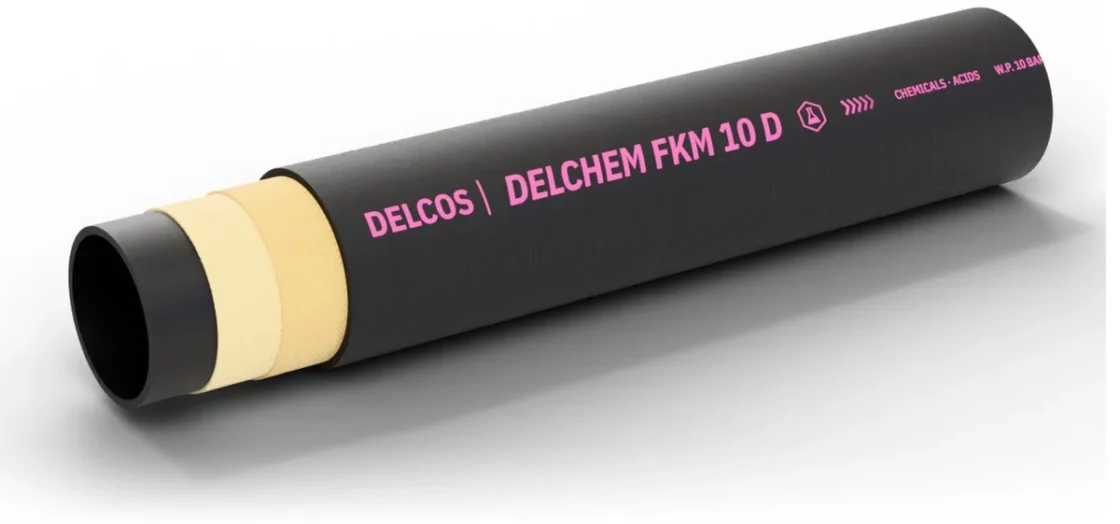

DELCHEM FKM 10 D hose with layers partly removed: inner tube, reinforcement and cover

DELCHEM FKM 10 D FKM delivery hose for strong acids

FKM delivery hose for aggressive chemicals and highly concentrated acids. Inner diameter 6–51 mm, working pressure up to 10 bar, temperature from −35 to +100 °C.

Inner diameter: 6–51 mm
Working pressure: up to 10 bar
Mode: pressure only
Temperature: −35…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 6, 8, 10, 13, 16, 19, 20, 25, 30, 32, 35, 38, 40, 51
Working pressure, bar: 10
Medium: Acids, chemicals
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −35…+100
Tube material: FKM
Coil length, m: 20, 40

Construction

Inner tube: FKM rubber, black, smooth
Reinforcement: High strength synthetic textile plies
Cover: Chloroprene rubber (CR), black, smooth, cloth impression, resistant to ozone, weathering, oils and chemicals

DELCHEM FKM 10 D sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
6	832006016	16	10	40	0.27	20, 40
8	832008018	18	10	40	0.32	20, 40
10	832010020	20	10	40	0.38	40
13	832013023	23	10	40	0.45	40
16	832016026	26	10	40	0.53	40
19	832019029	29	10	40	0.6	40
20	832020030	30	10	40	0.63	40
25	832025035	35	10	40	0.75	40
30	832030042	42	10	40	1.07	40
32	832032044	44	10	40	1.15	40
35	832035047	47	10	40	1.25	40
38	832038050	50	10	40	1.33	40
40	832040054	54	10	40	1.65	40
51	832051065	65	10	40	2.1	40

Application and limits

Application: FKM delivery hose for aggressive chemicals and highly concentrated acids.
Features: Up to +100 °C
Limits: Operating temperature from −35 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
