DELPHARMA FEP 16 SD FEP lined hose for pharmaceutical and food products, 16 bar
Suction and delivery hose with a FEP inner tube for pharmaceutical, cosmetic and food products, up to +170 °C. Inner diameter 19–76 mm, working pressure up to 16 bar, temperature from −50 to +170 °C.
- Inner diameter
- 19–76 mm
- Working pressure
- up to 16 bar
- Mode
- pressure and suction
- Temperature
- −50…+170 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5, 76
- Working pressure, bar
- 16
- Medium
- Cosmetic products, food products, pharmaceutical products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −50…+170
- Tube material
- FEP
- Coil length, m
- 20

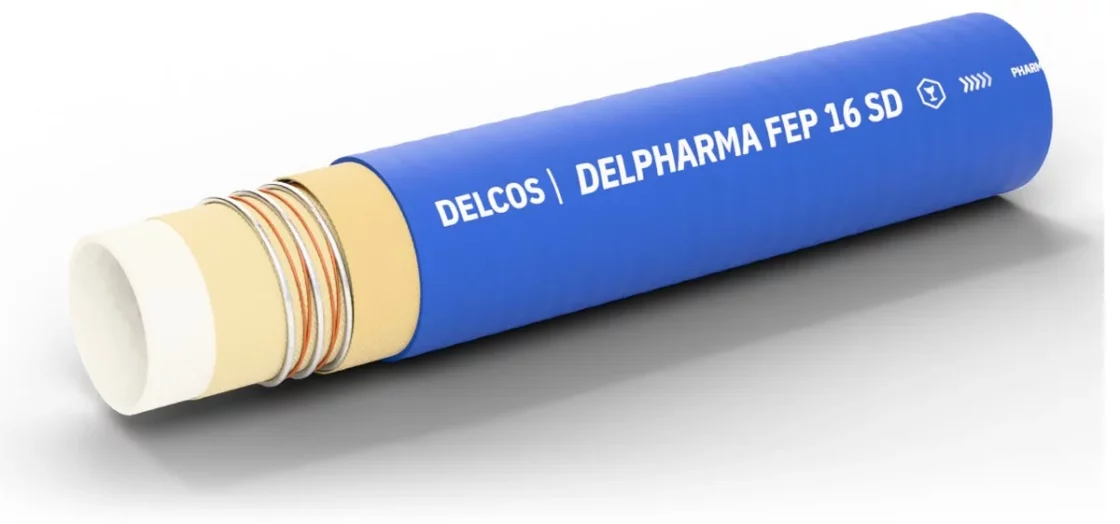

Construction
- Inner tube
- FEP fluoropolymer, white, glossy, non-conductive
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- EPDM rubber, blue, smooth, cloth impression, resistant to abrasion, ozone and weathering
- Electrical properties
- Two crossed copper wires for grounding
DELPHARMA FEP 16 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 773019031 | 31 | 16 | 64 | 0.9 | 125 | 0.63 | 20 |
| 25 | 773025037 | 37 | 16 | 64 | 0.9 | 150 | 0.77 | 20 |
| 32 | 773032044 | 44 | 16 | 64 | 0.9 | 175 | 0.98 | 20 |
| 38 | 773038051 | 51 | 16 | 64 | 0.9 | 225 | 1.2 | 20 |
| 51 | 773051067 | 67 | 16 | 64 | 0.9 | 275 | 2.01 | 20 |
| 63.5 | 773063080 | 80 | 16 | 64 | 0.9 | 300 | 2.65 | 20 |
| 76 | 773076092 | 92 | 16 | 64 | 0.9 | 350 | 3.51 | 20 |
Application and limits
- Application
- Suction and delivery hose with a FEP inner tube for pharmaceutical, cosmetic and food products, up to +170 °C.
- Features
- Two crossed copper wires for grounding, vacuum resistant, up to +170 °C
- Limits
- Operating temperature from −50 to +170 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
