DELEXHAUST 250 °C Exhaust extraction hose up to +250 °C
Suction hose for very hot vehicle exhaust and other warm gases, for reels and overhead rails in garages, body shops and test centres. Inner diameter 100–254 mm, temperature from −50 to +250 °C.
- Inner diameter
- 100–254 mm
- Mode
- suction
- Temperature
- −50…+250 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 100, 125, 150, 200, 254
- Medium
- Exhaust gases
- Mode
- Suction
- Reinforcement
- Steel helix (external)
- Temperature, °C
- −50…+250
- Tube material
- Aluminised glass fibre cloth

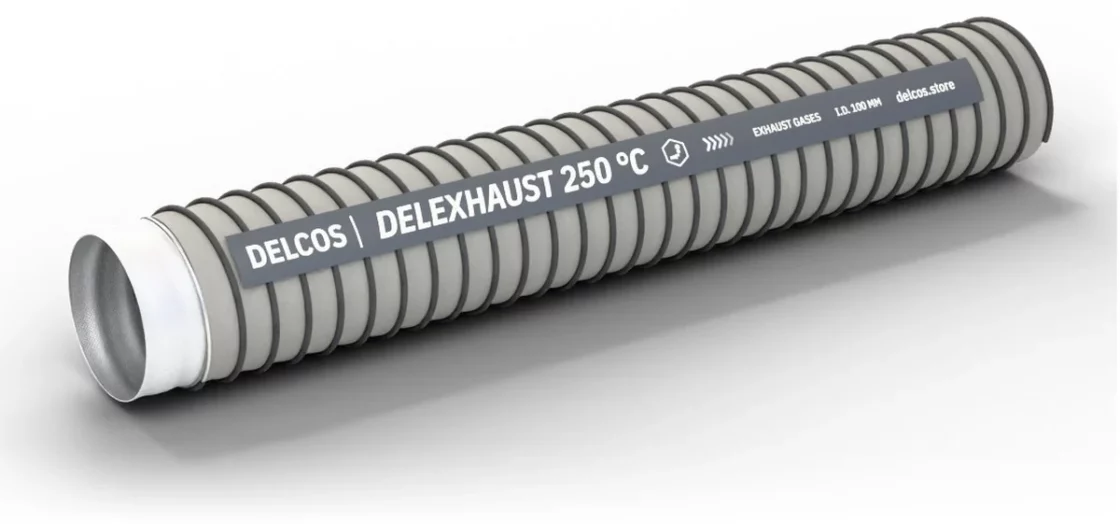

Construction
- Inner tube
- Aluminised glass fibre cloth, grey, smooth
- Cover
- Aramid fabric, grey, with an external steel helix held by a sewn ribbon; smooth cuffs at both ends
DELEXHAUST 250 °C sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|
| 100 | 614100000 | 125 | 0.98 | on request |
| 125 | 614125000 | 150 | 1.4 | on request |
| 150 | 614150000 | 200 | 1.6 | on request |
| 200 | 614200000 | 250 | 2.1 | on request |
| 254 | 614254000 | 300 | 2.55 | on request |
Application and limits
- Application
- Suction hose for very hot vehicle exhaust and other warm gases, for reels and overhead rails in garages, body shops and test centres.
- Features
- Smooth cuffs at both ends, up to +250 °C
- Limits
- Operating temperature from −50 to +250 °C.
