DELPHARMA SIL SD Silicone suction and delivery hose for pharmaceutical and food products
Silicone suction and delivery hose for pharmaceutical, cosmetic and food products at very high temperatures, up to +200 °C. Inner diameter 19–63.5 mm, working pressure up to 5 bar, temperature from −50 to +200 °C.
- Inner diameter
- 19–63.5 mm
- Working pressure
- up to 5 bar
- Mode
- pressure and suction
- Temperature
- −50…+200 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 19, 25, 32, 38, 51, 63.5
- Working pressure, bar
- 5
- Medium
- Cosmetic products, food products, pharmaceutical products
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −50…+200
- Tube material
- Silicone (VMQ)
- Coil length, m
- 10, 20

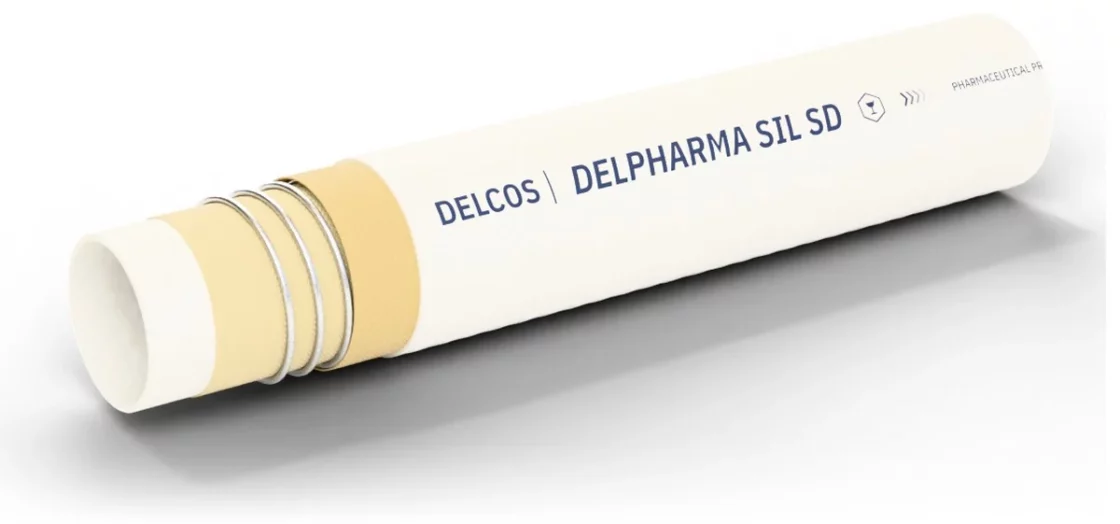

Construction
- Inner tube
- Silicone rubber (VMQ), white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- Silicone rubber (VMQ), white, smooth, glossy, cloth impression, resistant to abrasion and weathering
DELPHARMA SIL SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Outer diameter, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 19 | 771019031 | 31 | 5 | 15 | 0.7 | 100 | 0.86 | 10, 20 |
| 25 | 771025037 | 37 | 5 | 15 | 0.7 | 130 | 0.86 | 10, 20 |
| 32 | 771032044 | 44 | 5 | 15 | 0.7 | 180 | 1.13 | 10, 20 |
| 38 | 771038051 | 51 | 5 | 15 | 0.7 | 200 | 1.26 | 10, 20 |
| 51 | 771051065 | 65 | 5 | 15 | 0.7 | 270 | 1.82 | 10, 20 |
| 63.5 | 771063079 | 79 | 5 | 15 | 0.7 | 350 | 2.15 | 10, 20 |
Application and limits
- Application
- Silicone suction and delivery hose for pharmaceutical, cosmetic and food products at very high temperatures, up to +200 °C.
- Features
- Odourless and tasteless inner tube, vacuum resistant, up to +200 °C
- Limits
- Operating temperature from −50 to +200 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
