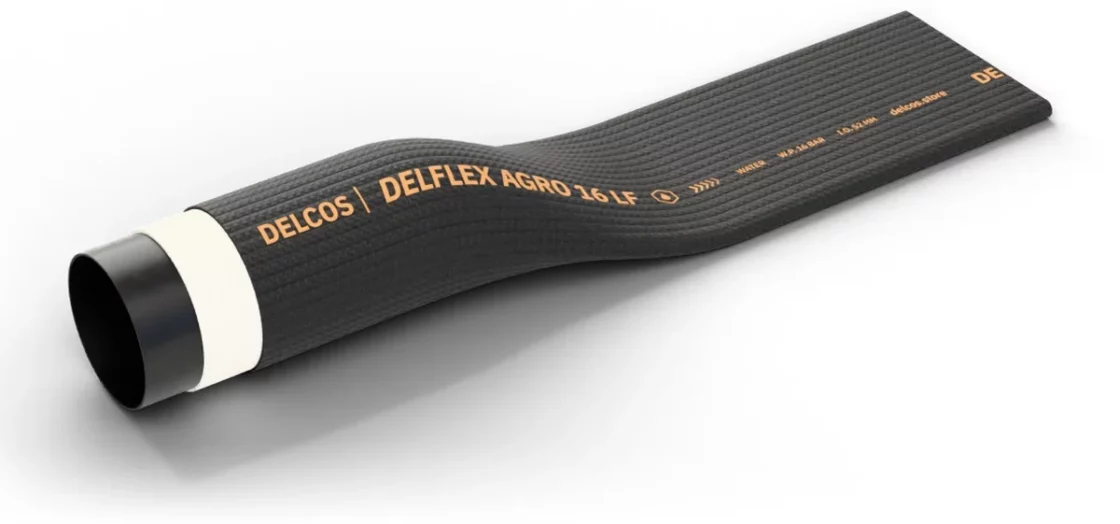

DELFLEX AGRO 16 LF hose with layers partly removed: inner tube, reinforcement and cover

DELFLEX AGRO 16 LF Agricultural irrigation and slurry hose

Rubber covered agricultural hose for linear and travelling irrigation and slurry disposal. Inner diameter 52–152 mm, working pressure up to 16 bar, temperature from −20 to +100 °C.

Inner diameter: 52–152 mm
Working pressure: up to 16 bar
Mode: pressure
Temperature: −20…+100 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 52, 65, 76, 90, 102, 110, 114, 127, 152
Working pressure, bar: 14, 15, 16
Medium: Manure and liquid fertiliser, slurry, waste water, water
Mode: Pressure, layflat
Reinforcement: Circular woven textile
Temperature, °C: −20…+100
Tube material: NBR/PVC
Coil length, m: 100, 200

Construction

Inner tube: Special high grade formulated NBR / PVC compound extruded through the weave in a unique one step production process. Special additives in the compound guarantee superior UV and ageing resistance. Very smooth for minimum friction loss
Reinforcement: Textile, warp: high tenacity polyester, heavy duty construction, ultra-high tensile strength; weft: polyamide, circular woven. The special weaving design offers a superior adhesion level and flow performance compared to an all polyester weave. Very low elongation due to a special manufacturing process. Totally embedded in the rubber compound, excellent protected against mechanical damage
Cover: Special high grade formulated NBR / PVC compound extruded through the weave in a unique one step production process. Special additives in the compound guarantee superior UV and ageing resistance. Ribbed and very thick for excellent abrasion resistance. Black color

DELFLEX AGRO 16 LF sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Wall thickness, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Tensile strength, kg	Coil length, m
52	649052058	3	16	50	0.6	4000	100, 200
65	649065071	3.2	16	50	0.85	6500	100, 200
76	649076082	3.2	16	50	0.95	8500	100, 200
90	649090097	3.4	16	50	1.1	9000	100, 200
102	649102109	3.4	16	50	1.35	11000	100, 200
110	649110117	3.4	16	50	1.4	12000	100, 200
114	649114121	3.4	15	45	1.45	12000	100, 200
127	649127134	3.5	15	45	1.7	13500	100, 200
152	649152159	3.5	14	42	1.95	17000	100, 200

Application and limits

Application: Rubber covered agricultural hose for linear and travelling irrigation and slurry disposal.
Features: Excellent resistance to weathering, UV and ozone, superior abrasion resistance, suitable for all ground conditions, no biodegradation, excellent resistance to agricultural chemicals and fertilizers, minimum pressure loss, very low elongation, supreme adhesion level between rubber and textile reinforcement, very durable and hardwearing for long service life
Limits: Operating temperature from −20 to +100 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
Layflat hoses are not suitable for suction.
Technical data based on water. For air pressure the minimum safety ratio is 1:4. Depending on the application our product can be operated with a maximum working pressure up to 50% of the bursting pressure. Please consult us for approval.
Other lengths on request. Lengths up to 200 m.
