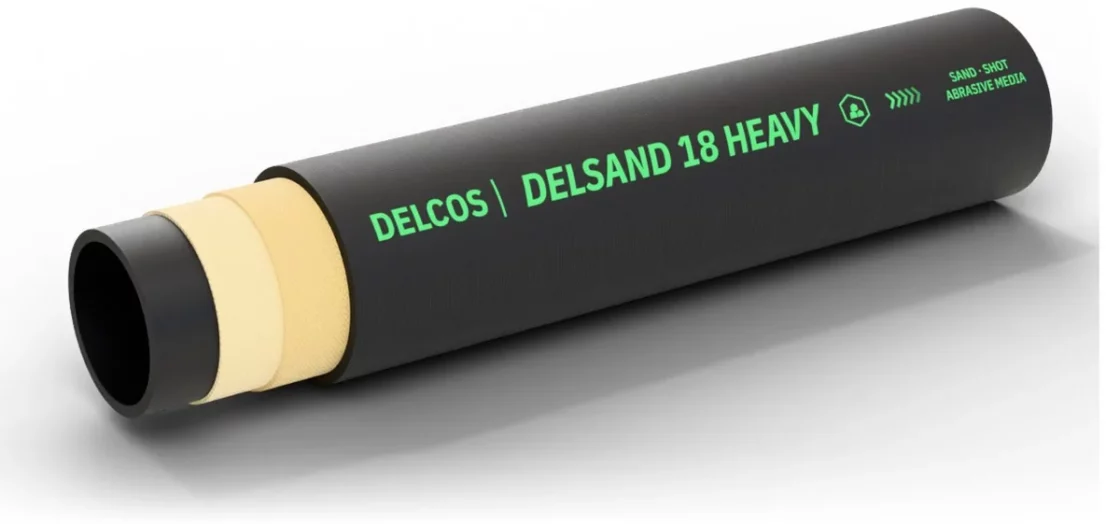

DELSAND 18 HEAVY hose with layers partly removed: inner tube, reinforcement and cover

DELSAND 18 HEAVY Heavy duty blasting hose, 18 bar

Blasting hose for sand and shot at high pressure, with high abrasion resistance. Inner diameter 13–65 mm, working pressure up to 18 bar, temperature from −40 to +70 °C.

Inner diameter: 13–65 mm
Working pressure: up to 18 bar
Mode: pressure only
Temperature: −40…+70 °C

Request a quote

Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.

We can assemble the hose with couplings and pressure test it — service.

Specifications

Inner diameter, mm: 13, 16, 19, 25, 30, 32, 35, 38, 40, 51, 60, 65
Working pressure, bar: 18
Medium: Abrasive media, sand, shot
Mode: Pressure
Reinforcement: Textile cord
Temperature, °C: −40…+70
Tube material: Synthetic and natural rubber
Coil length, m: 40, 61

Construction

Inner tube: NR/SBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
Reinforcement: High strength synthetic textile plies
Cover: NR/SBR rubber, black, smooth, cloth impression, antistatic, resistant to abrasion and weathering
Electrical properties: Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover

DELSAND 18 HEAVY sizes

Pressure in bar. The table scrolls sideways; the first column stays in place.

Inner diameter, mm	Article	Outer diameter, mm	Working pressure, bar	Burst pressure, bar	Weight, kg/m	Coil length, m
13	909013025	25	18	54	0.45	40
16	909016030	30	18	54	0.63	40
19	909019030	30	18	54	0.53	40, 61
19	909019033	33	18	54	0.71	40, 61
25	909025040	40	18	54	0.96	40, 61
30	909030045	45	18	54	1.1	40, 61
32	909032048	48	18	54	1.26	40, 61
35	909035054	54	18	54	1.66	40, 61
38	909038054	54	18	54	1.44	40, 61
40	909040060	60	18	54	1.96	40, 61
51	909051071	71	18	54	2.39	40, 61
60	909060080	80	18	54	2.75	40, 61
65	909065085	85	18	54	2.78	40, 61

Application and limits

Application: Blasting hose for sand and shot at high pressure, with high abrasion resistance.
Features: Abrasion resistant, conductive inner tube
Limits: Operating temperature from −40 to +70 °C.
Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
