DELFOOD MILK 10 D
Food delivery hose for milk and fatty foods
ID 19–102 mm · up to 10 bar
DELFOOD TANKER 10 SD Milk collection tanker hose
Very flexible, highly abrasion resistant suction and delivery hose for milk and fatty foods, designed for daily milk collection. Inner diameter 51–102 mm, working pressure up to 10 bar, temperature from −40 to +80 °C.
- Inner diameter
- 51–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+80 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 63.5, 76, 80, 102
- Working pressure, bar
- 10
- Medium
- Fatty foods, milk
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, plastic helix
- Temperature, °C
- −40…+80
- Tube material
- NBR
- Coil length, m
- 20

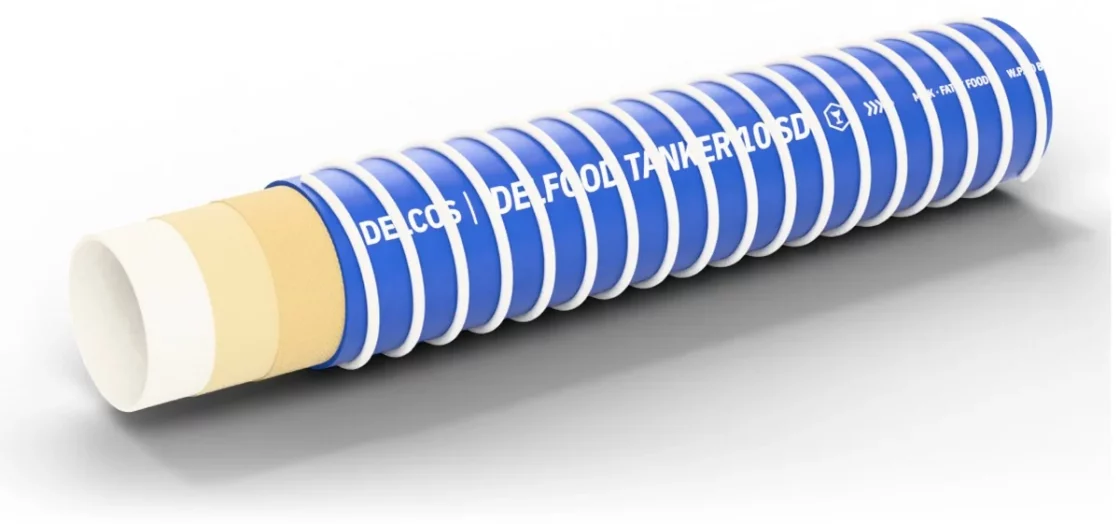

Construction
- Inner tube
- NBR rubber, white, smooth, food quality, odourless and tasteless
- Reinforcement
- High strength synthetic textile plies
- Cover
- NBR rubber, blue, smooth, glossy, resistant to abrasion, ozone and weathering, white plastic helix on the cover
DELFOOD TANKER 10 SD sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Wall thickness, mm | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|---|
| 51 | 739051060 | 4.5 | 10 | 30 | 0.7 | 110 | 1.5 | 20 |
| 63.5 | 739063073 | 5 | 10 | 30 | 0.7 | 138 | 1.81 | 20 |
| 76 | 739076086 | 5 | 10 | 30 | 0.7 | 170 | 2.18 | 20 |
| 80 | 739080090 | 5 | 10 | 30 | 0.7 | 180 | 2.38 | 20 |
| 102 | 739102116 | 7 | 10 | 30 | 0.7 | 230 | 2.88 | 20 |
Application and limits
- Application
- Very flexible, highly abrasion resistant suction and delivery hose for milk and fatty foods, designed for daily milk collection.
- Features
- Very flexible, abrasion resistant, odourless and tasteless inner tube
- Limits
- Operating temperature from −40 to +80 °C.
- Sterilisation at up to 110 °C for max. 30 min.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
