DELHD 10 SD GR Flexible suction and delivery hose for abrasives, helix grooved cover
Suction and delivery hose for concrete, sand, gravel and other abrasive materials; the helix grooved cover makes it very flexible. Inner diameter 51–102 mm, working pressure up to 10 bar, temperature from −40 to +70 °C.
- Inner diameter
- 51–102 mm
- Working pressure
- up to 10 bar
- Mode
- pressure and suction
- Temperature
- −40…+70 °C
Delivery across Bulgaria by Econt and Speedy and across the EU — delivery terms.
We can assemble the hose with couplings and pressure test it — service.
Specifications
- Inner diameter, mm
- 51, 60, 63.5, 70, 76, 80, 90, 102
- Working pressure, bar
- 10
- Medium
- Abrasive media, concrete, gravel, sand
- Mode
- Pressure and suction
- Reinforcement
- Textile cord, steel helix
- Temperature, °C
- −40…+70
- Tube material
- Synthetic and natural rubber
- Coil length, m
- 40

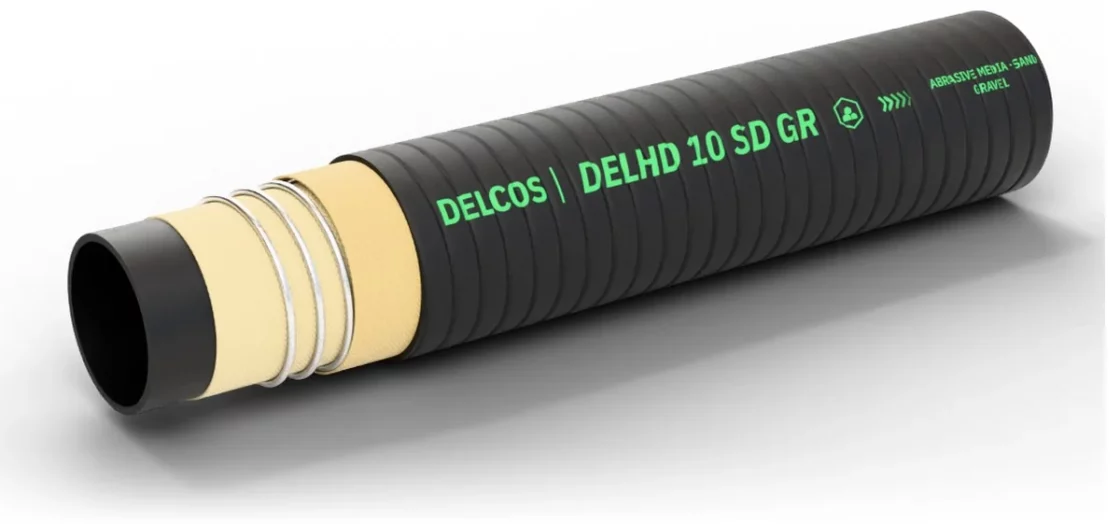

Construction
- Inner tube
- NR/SBR rubber, black, smooth, conductive (R ≤ 10⁶ Ω)
- Reinforcement
- High strength synthetic textile plies, steel helix
- Cover
- NR/SBR rubber, black, helix grooved, cloth impression, antistatic, resistant to abrasion and weathering
- Electrical properties
- Conductive inner tube (R ≤ 10⁶ Ω); antistatic cover
DELHD 10 SD GR sizes
Pressure in bar. The table scrolls sideways; the first column stays in place.
| Inner diameter, mm | Article | Working pressure, bar | Burst pressure, bar | Vacuum, bar | Bend radius, mm | Weight, kg/m | Coil length, m |
|---|---|---|---|---|---|---|---|
| 51 | 913051000 | 10 | 30 | 0.9 | 153 | 1.8 | 40 |
| 60 | 913060000 | 10 | 30 | 0.9 | 180 | 2.1 | 40 |
| 63.5 | 913063000 | 10 | 30 | 0.9 | 285 | 2.3 | 40 |
| 70 | 913070000 | 10 | 30 | 0.9 | 315 | 2.5 | 40 |
| 76 | 913076000 | 10 | 30 | 0.9 | 340 | 2.78 | 40 |
| 80 | 913080000 | 10 | 30 | 0.9 | 360 | 2.95 | 40 |
| 90 | 913090000 | 10 | 30 | 0.9 | 405 | 3.28 | 40 |
| 102 | 913102000 | 10 | 30 | 0.9 | 450 | 3.74 | 40 |
Application and limits
- Application
- Suction and delivery hose for concrete, sand, gravel and other abrasive materials; the helix grooved cover makes it very flexible.
- Features
- Very flexible, abrasion resistant
- Limits
- Operating temperature from −40 to +70 °C.
- Working pressure depends on the inner diameter — see the table. Burst pressure is a reference value, not a working pressure.
